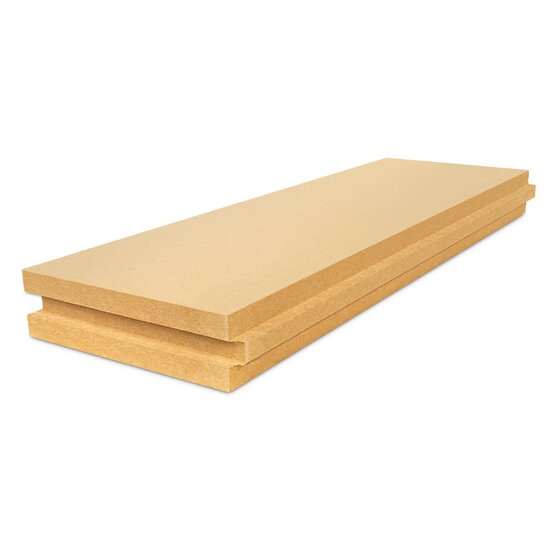

STEICO therm dry T&G wood fiber insulation
Steico
Regular price
- Multifunctional rigid woodfibre insulation board
- Available in tongue & groove profiles, stepped profiles and
- square edged
- Manufactured in dry process
- Exceptionally light and robust
- Excellent insulation properties in winter and summer
- Water vapour open
- Helps to regulate the indoor climate
-
The datasheet STEICOtherm dry >>>
- The declaration of performance STEICOtherm dry >>>
- STEICO heat protection EN i.pdf >>>
- STEICO Passivhaus Certificate STEICO Building System EN.pdf >>>

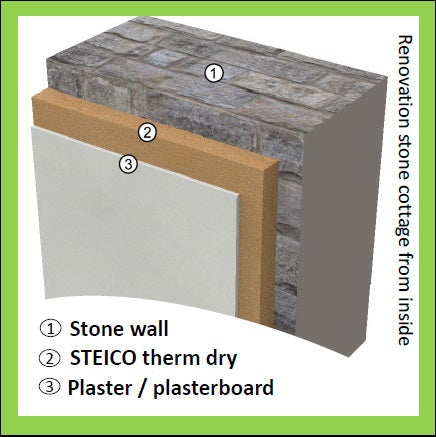

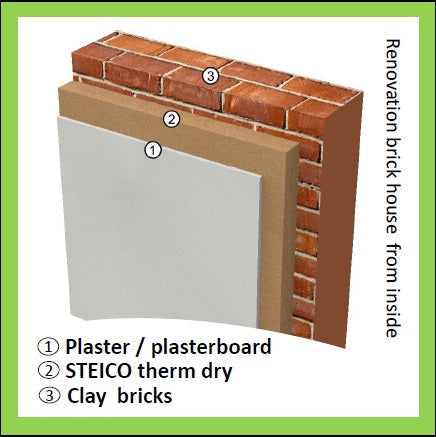

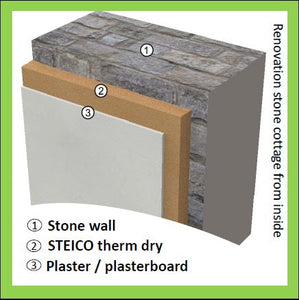

A healthy indoor climate begins with rigid interior insulation.
With their breathable structure, STEICOtherm dry insulation boards are perfectly matched to the physical properties of brick or masonry. The walls can “breathe”, at the same time the heating expenses is minimized. A positive side effect: Well-insulated walls increase indore temperature. You can feel it. The rooms are no longer chilly in winter, and cooler in summer.
Better protection against the cold in winter
Greater insulation efficiency with STEICO therm dry, thermal conductivity only λ D 0.037 [W / (m * K)], STEICO therm dry meets the values for healthier living and ecological buildings. This enables particularly efficient insulation solutions to be implemented. With STEICO therm dry you achieve optimal structural heat protection and a create comfort.
Protect substance, preserve values
With the practical and universal STEICO therm dry insulation boards, you can make the walls or roof of your house fit for the future. In addition to the considerable heating cost savings, the system is characterized by a particularly long service life. This is how STEICO insulation contributes to maintaining the value of your property.
Dimensions
|
Thickness [mm] |
Length [mm] |
Width [mm] |
Edge profile |
Number/pal. [pcs.] |
Area/pal. Gross [m2] |
Area/pal. Net [m²] |
|---|---|---|---|---|---|---|
| 60 | 1880 | 600 | T+G | 38 | 42,864 | 40,532 |
| 80 | 1880 | 600 | T+G | 28 | 31,584 | 29,866 |
| 100 | 1880 | 600 | T+G | 22 | 24,816 | 23,466 |
| 120 | 1880 | 600 | T+G | 18 | 20,304 | 19,199 |
| 140 | 1880 | 600 | T+G | 16 | 18,048 | 17,066 |
| 160 | 1880 | 600 | T+G | 14 | 15,792 | 14,933 |
| 180 | 1880 | 600 | T+G | 12 | 13,536 | 12,800 |
STEICOtherm dry
| Produced and supervised according to | EN 13171 |
| Board designation | WF–EN13171–T5–CS(10\Y)50–TR10– WS1,0 – MU3 |
| Edge profile | tongue & groove profiles stepped profiles square edged |
| Density [kg/m³] | approx. 110 |
| Declared thermal conductivity λD [W/(m*K)] | 0,037 |
| Declared thermal resistance RD [(m²*K)/W] | 1,05(40) / 1,60(60) / 2,15(80) / 2,15(80) / 3,20(120) / 3,75(140) / 4,30(160) / 4,85(180) / 5,40(200) / 5,90(220) / 6,45(240) / 7,00 (260) /7,55(280) /8,10(300) |
| Water vapour diffusion resistance factor μ | 3 |
| Fire class according to EN 13501-1 | E |
| sd value [m] | 0,12(40) / 0,18(60) / 0,24(80) / 0,3(100) / 0,36(120) / 0,42(140) / 0,48(160) / 0,54(180) / 0,6(200) / 0,66(220) / 0,72(240) / 0,78(260) / 0,84(280) / 0,9(300) |
| Specific heat capacity c [J/(kg*K)] | 2.100 |
| Compression strength at 10 % deformation [N/mm²] | 0,05 |
| Compression strength [kPa] | 50 |
| Tensile strength perpendicular to face [kPa] | 5 |
| Short-term water absorption [kg/m²] | 1,0 |
| Raw material | wood fibre, Polyurethane Resin, Paraffin Wax |
| Waste code (EAK) | 030105 / 170201 |
Estimated delivery time 1-3 days
