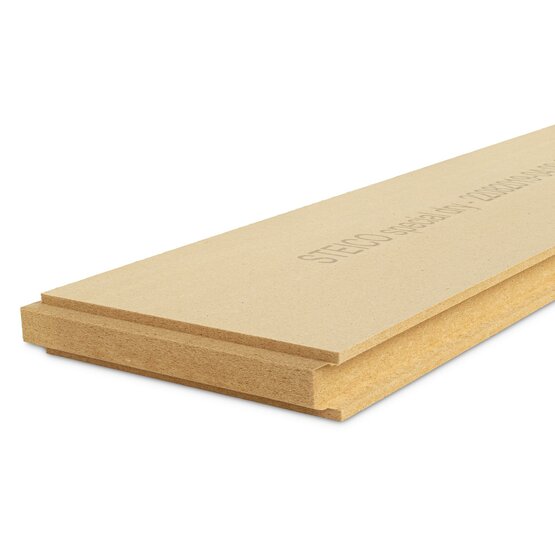

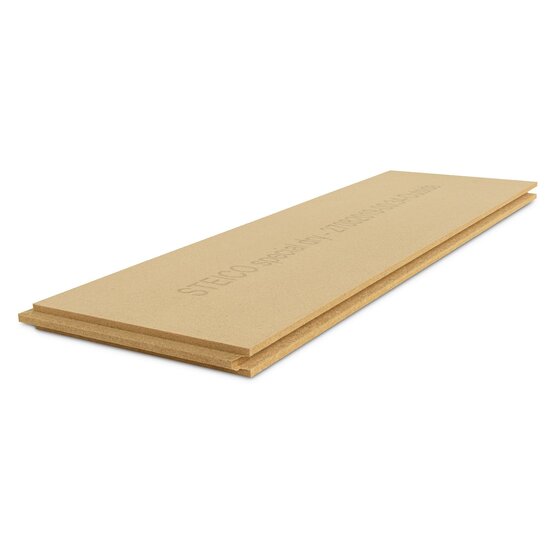

STEICO special dry 1880mm rigid wood fiber insulation
STEICO special dry 1880mm rigid wood fiber insulation
STEICO special dry 1880mm rigid wood fiber insulation

STEICO special dry 1880mm rigid wood fiber insulation

Steico pre order item - Deliver 5-14 working days

0,00
949,48

Size 1880x600mm

Shipping

Ask about this product

STEICO Special Dry 1800mm

An economic solution: One board type for both Roof and Wall construction

Combined sheathing- and renderboard made from natural wood fibre

  • Insulating board from the dry process with thicknesses up to 200mm
  • Particularly low thermal conductivity, excellent protection against the cold
  • Reduces thermal bridging
    particularly vapor permeable for increased construction security in renovations
  • Extra thick panels especially for renovation use
  • Can be used in conjunction with STEICO ai-injected insulation systems
  • Ecological, environmentally friendly and recyclable like wood

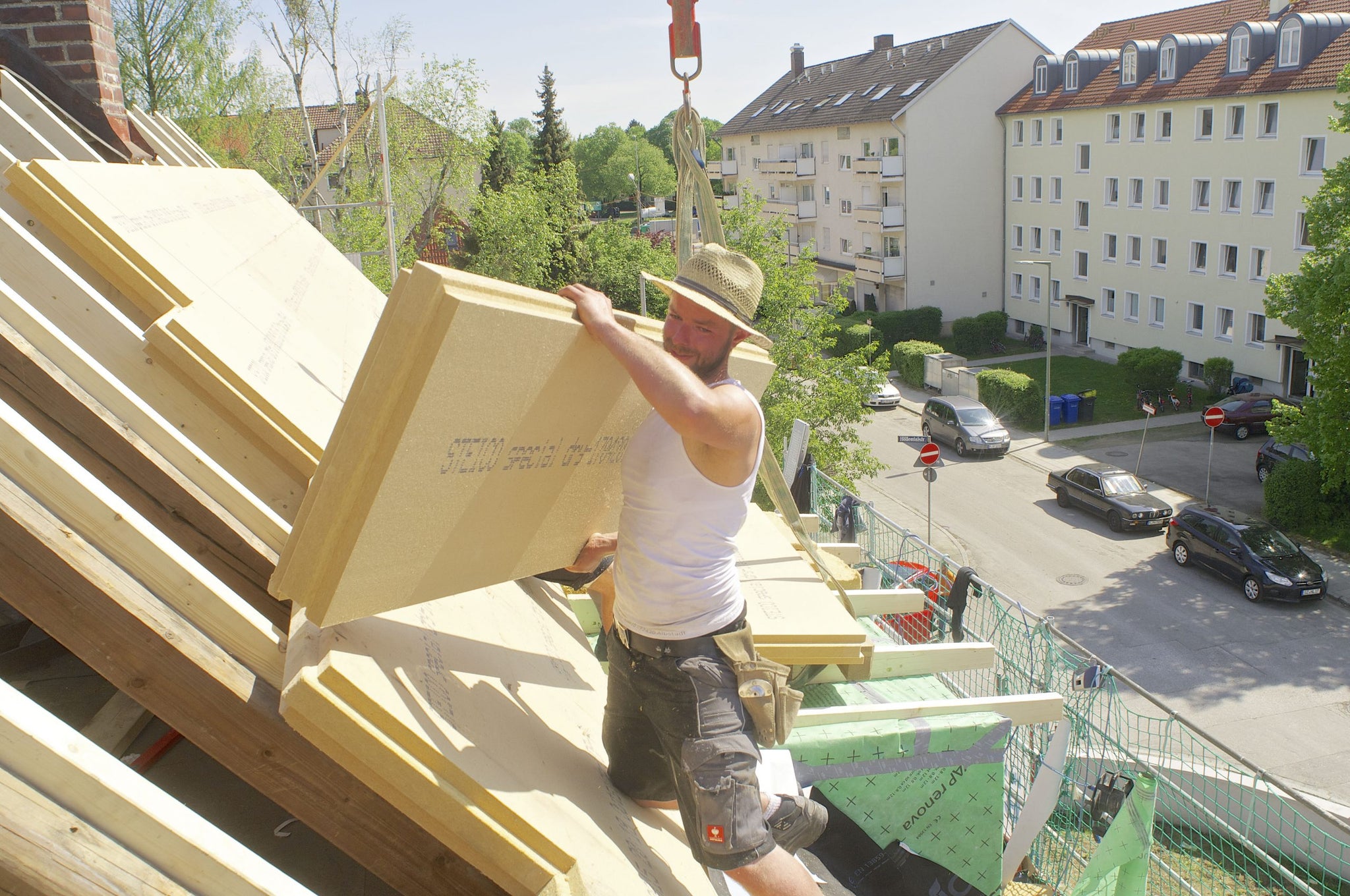

STEICOspecial dry with its Tongue & Grooved profile can offer immediate wind and rain protection for roofs of pitches over 16˚ without additional materials, (this can be achieved for roofs with shallower pitches with some additional measures).


Characteristics

Produced and supervised according to DIN EN 13171, DIN EN 14964
Board designation WF – EN 13171 – T5 – DS(70,-)2 – CS(10\Y)100 – TR20-WS1,0 – MU3, EN-14964-IL
Fire class according to EN 13501-1 E
Declared thermal conductivity [W/(m*K)] 0,04
Declared thermal resistance [(m²*K)/W] 1(40) / 1,5(60) / 2(80) / 2,5(100) / 3(120) /3,5(140) / 4(160) / 4,5(180) / 5(200)
Density [kg/m³] ca. 140
Water vapour diffusion resistance factor µ 3
sd-value [m] 0,12(40) / 0,18(60) / 0,24(80) / 0,30(100) /0,36(120) / 0,42(140) / 0,48(160) / 0,54(180) / 0,60(200)
Specific heat capacity [J/(kg*K)] 2.100
Compression strength at 10% deformation [N/mm²] 0,1
Compression strength [kPa] ≥100
Tensile strength perpendicular to face [kPa] ≥ 20
Declared level of airflow resistance [(kPa*s)/m²] ≥100
Ingredients wood fibre, polyurethane resin, paraffin wax


STEICOspecial dry

Article number

Thickness [mm]

Length [mm]

Width [mm]

 Edge profile

Number/pal. [pcs.]

Coverage/pal. gross [m2]

 Coverage/pal. net [m²]
334121 60 1880 600 T+G 36 40,608 38,399
334122 80 1880 600 T+G 28 31,584 29,866
334123 100 1880 600 T+G 22 24,816 23,466
334273 140 1880 600 T+G 16 18,048 17,066
334274 160 1880 600 T+G 14 15,792 14,933
334275 180 1880 600 T+G 12 13,536 12,800
334276 200 1880 600 T+G 12 13,536 12,800
335244 120 1880 600 T+G 18 20,304 19,199
411900 60 2230 600 T+G 36 48,168 45,644
411917 80 2230 600 T+G 28 37,464 35,501
411940 100 2230 600 T+G 22 29,436 27,893
433507 60 1325 600 T+G 38 30,210 28,405
433513 80 1325 600 T+G 28 22,260 20,930
433514 100 1325 600 T+G 22 17,490 16,445
