STEICO flex 036 50mm x 375mm 60.244m²

Steico

Regular price

682,27
641,00
0% OFF

Delivery option

Shipping

Ask about this product

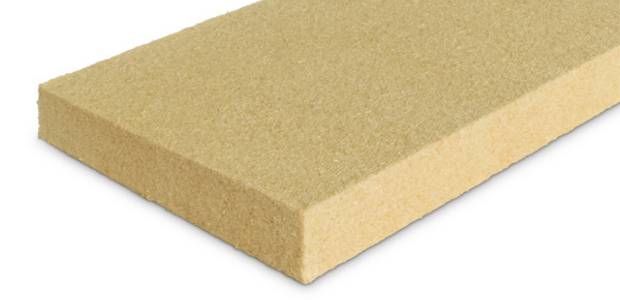

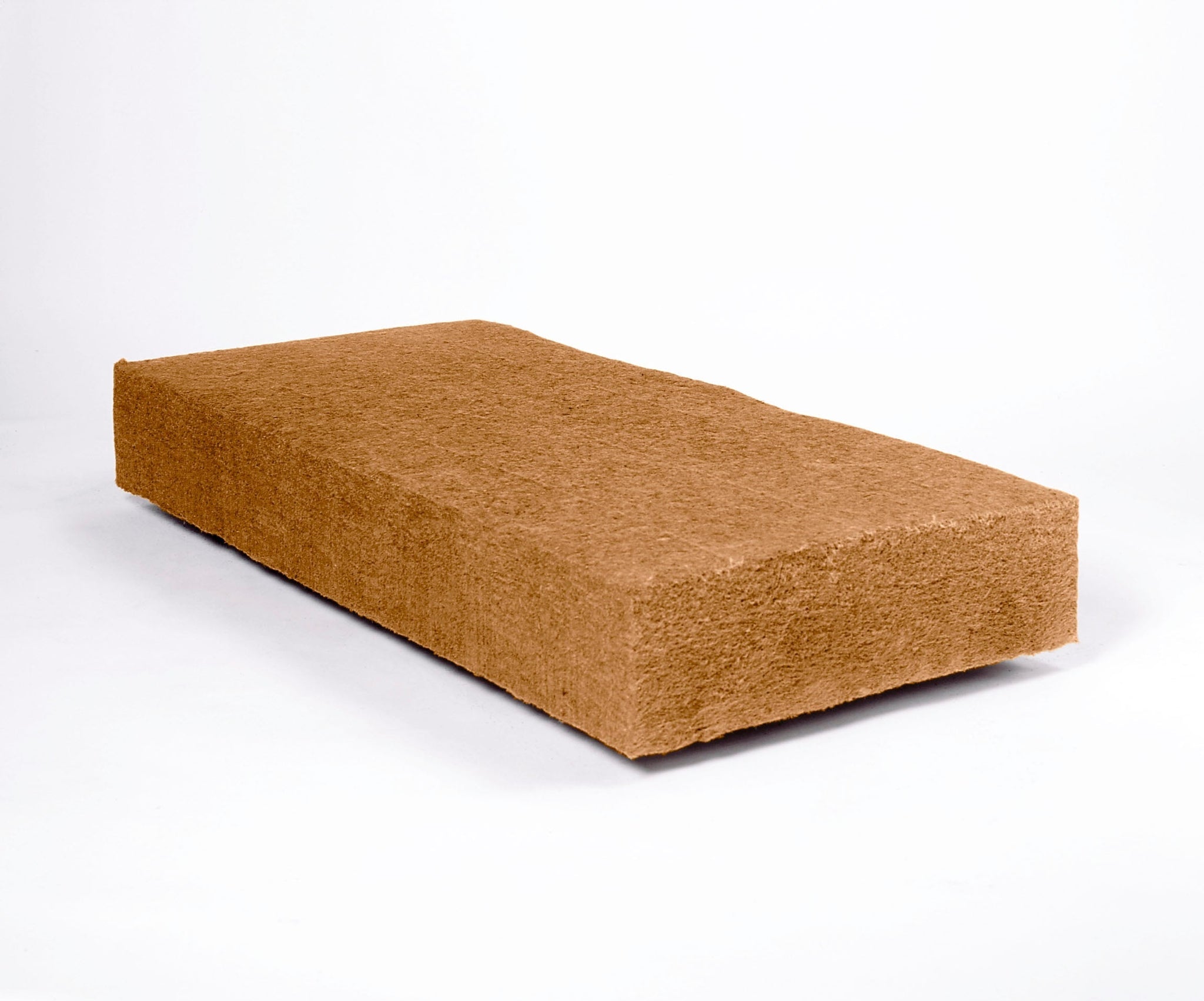

STEICO flex 036 flexible, ecological insulation from natural wood fibres

  • Lowest thermal conductivity of any wood based flexible insulation products
  • New fibre structure improves robustness and workability
  • Friction fits to adjoining components
  • Easy handling and classified as non-irritant to skin
  • Excellent insulation properties in winter and summer
  • Water vapour open for a healthy room environment
  • Provides a green architectural solution
  • Ecological and environmentally-friendly, fully recyclable



PACKAGING

Thickness [mm] Dimensions [mm] Weight/m² [kg/m²] Pieces / package Packages / pallet Coverage/pallet [m²] Weight/pal. [kg]
50 1.190 x 375
9 15 560.244 ca. 170


CHARACTERISTIC VALUES

Produced and supervised according to EN 13171
Board designation WF - EN 13171 - T3 - TR1 - AF5 - MU2
Fire class according to EN 13501-1 E
Declared thermal conductivity λD [W/(m*K)] 0,036
Declared thermal resistance RD [(m²*K)/W] 1,10(40) / 1,35(50) /1,65(60) / 2,20(80) / 2,75(100) / 3,30(120) /3,85(140) / 4,40(160) / 5,00 (180) / 5,55(200) /6,10(220) / 6,65(240)
Density [kg/m³] approx. 60
Water vapour diffusion resistance value μ 2
Specific heat capacity c [J/(kg*K)] 2.100
Declared level of airflow resistance [(kPa*s)/m²] ≥ 5
Ingredients wood fibres, polyolefin fibres, ammonium sulfate
Waste code (AVV) 030105 / 170201


Spanning  Capacity

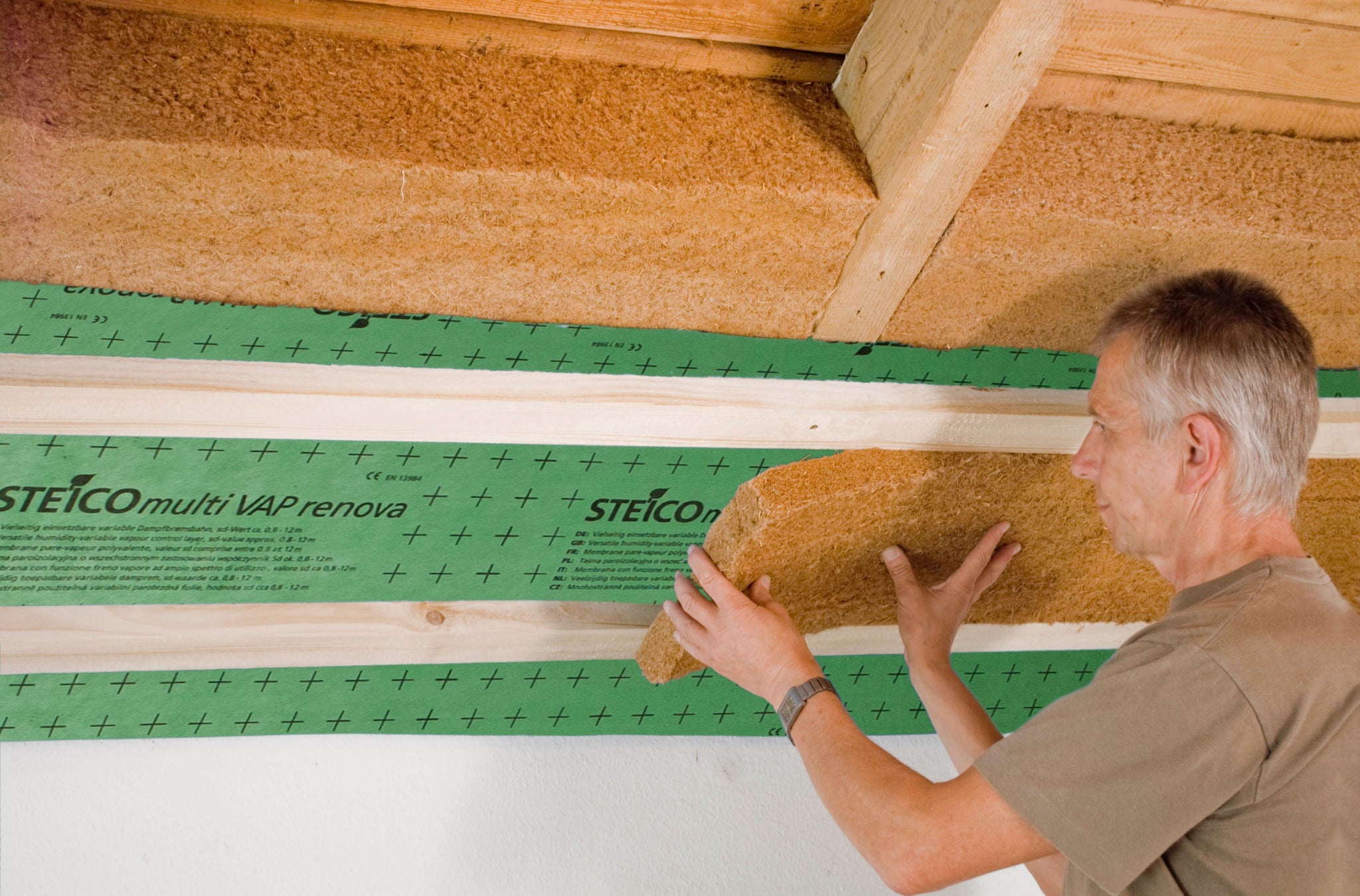

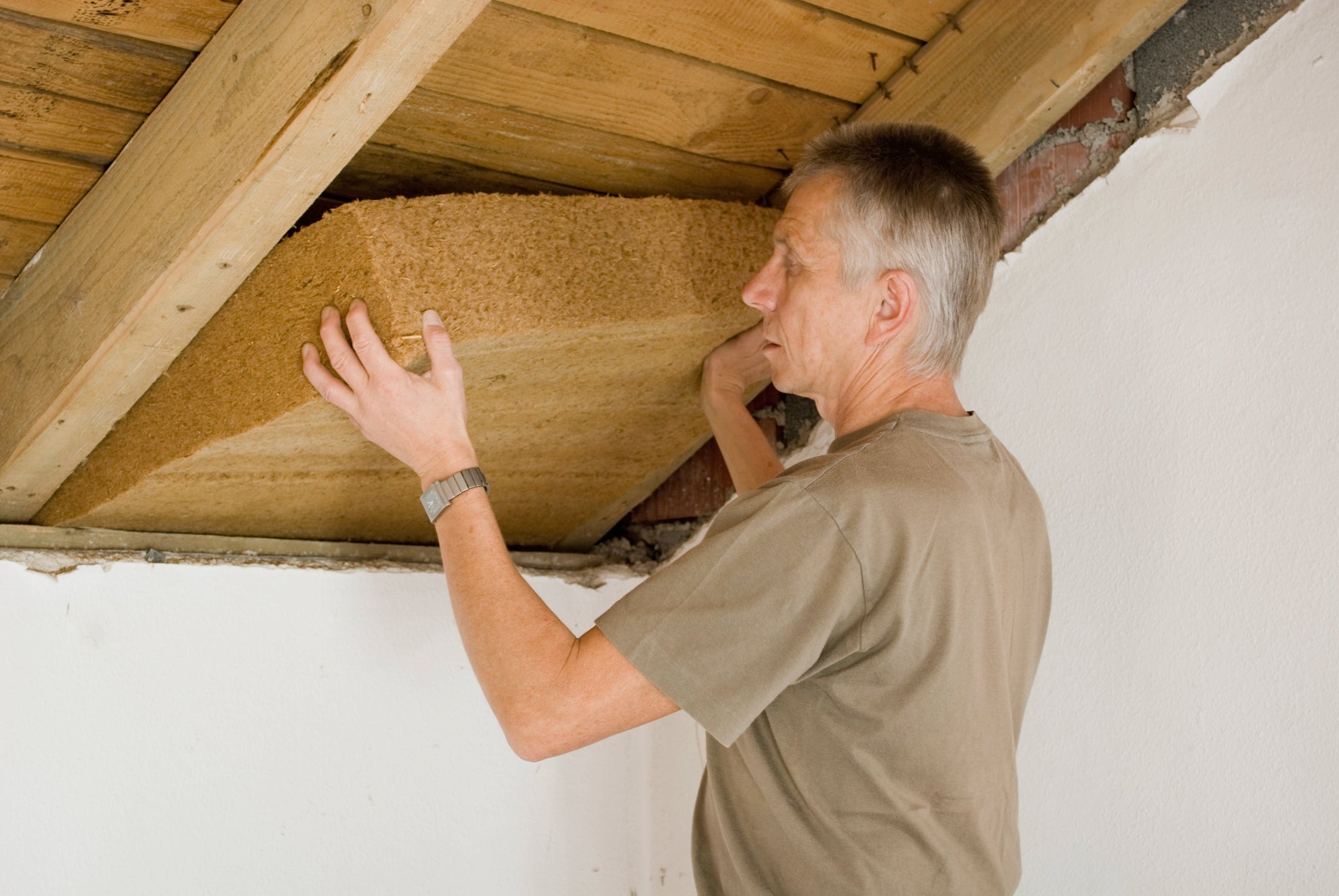

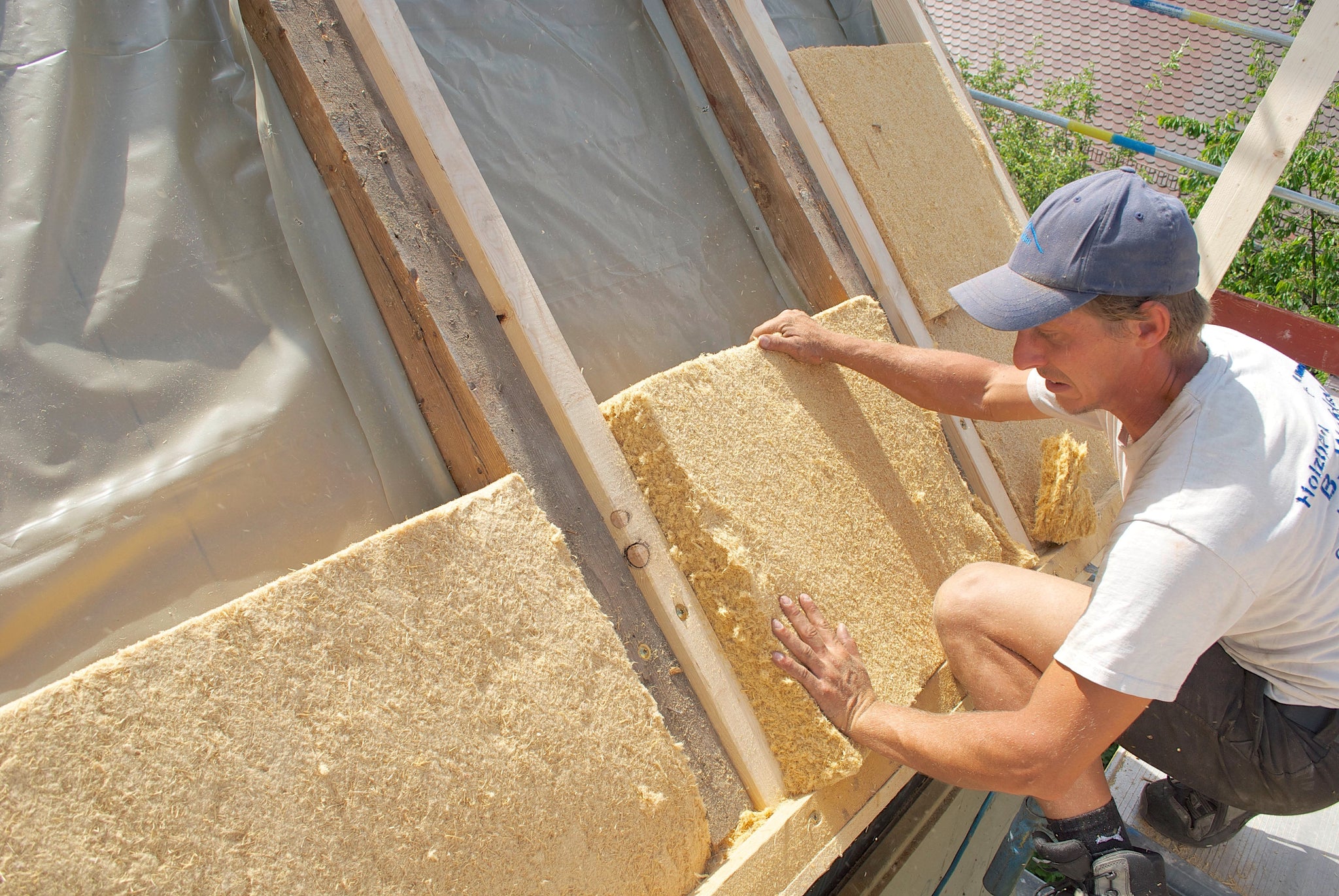

The standard board size for STEICOflex 036 is designed so that the batt will be a friction fit between 38mm wide timber studs spaced at 600 mm increments. A 375 mm wide batt is also available to fit between studs spaced at 400mm centres.

The maximum span of STEICOflex 036 is dependant on the thickness of the insulation batt used. The following maximum spans can be used:

Insulation thickness [mm] Max. Stud spacing [mm]
40 450
50 475
60 500
80 550
100 600
120 650
140 700
160 750
180 800
200 850
220 850
240 850


To reduce waste on site or accomodate insulation depths outside of our standard range, it is possible to install multiple layers of insulation batts to achieve the required depth of insulation.


Estimated delivery time 1-3 days
