STEICO flex 036 100mm x 375mm 32,13m²

Steico

Regular price

682,27

Quantity :

Delivery option

Pick up

Delivered

Shipping

Ask about this product

Product Details

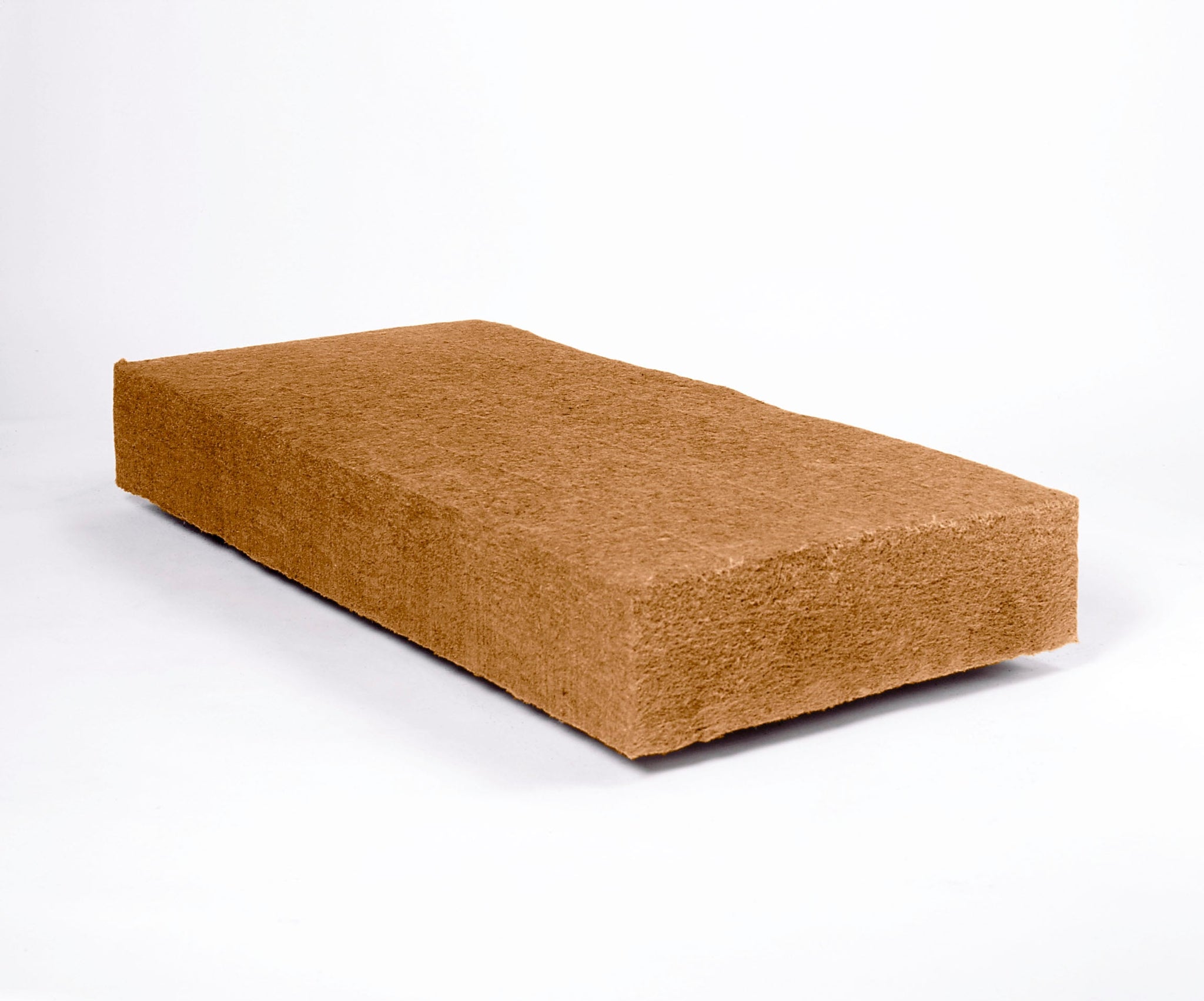

STEICO flex 036 flexible, ecological insulation from natural wood fibres

Lowest thermal conductivity of any wood based flexible insulation products
New fibre structure improves robustness and workability
Friction fits to adjoining components
Easy handling and classified as non-irritant to skin
Excellent insulation properties in winter and summer
Water vapour open for a healthy room environment
Provides a green architectural solution
Ecological and environmentally-friendly, fully recyclable

PACKAGING

Thickness [mm]	Dimensions [mm]	Weight/m² [kg/m²]	Pieces / package	Packages / pallet	Coverage/pallet [m²]	Weight/pal. [kg]
100	1.190 x 375	6,0	4	18	32,13	ca. 250

CHARACTERISTIC VALUES

Produced and supervised according to	EN 13171
Board designation	WF - EN 13171 - T3 - TR1 - AF5 - MU2
Fire class according to EN 13501-1	E
Declared thermal conductivity λD [W/(m*K)]	0,036
Declared thermal resistance RD [(m²*K)/W]	1,10(40) / 1,35(50) /1,65(60) / 2,20(80) / 2,75(100) / 3,30(120) /3,85(140) / 4,40(160) / 5,00 (180) / 5,55(200) /6,10(220) / 6,65(240)
Density [kg/m³]	approx. 60
Water vapour diffusion resistance value μ	2
Specific heat capacity c [J/(kg*K)]	2.100
Declared level of airflow resistance [(kPa*s)/m²]	≥ 5
Ingredients	wood fibres, polyolefin fibres, ammonium sulfate
Waste code (AVV)	030105 / 170201

Spanning Capacity

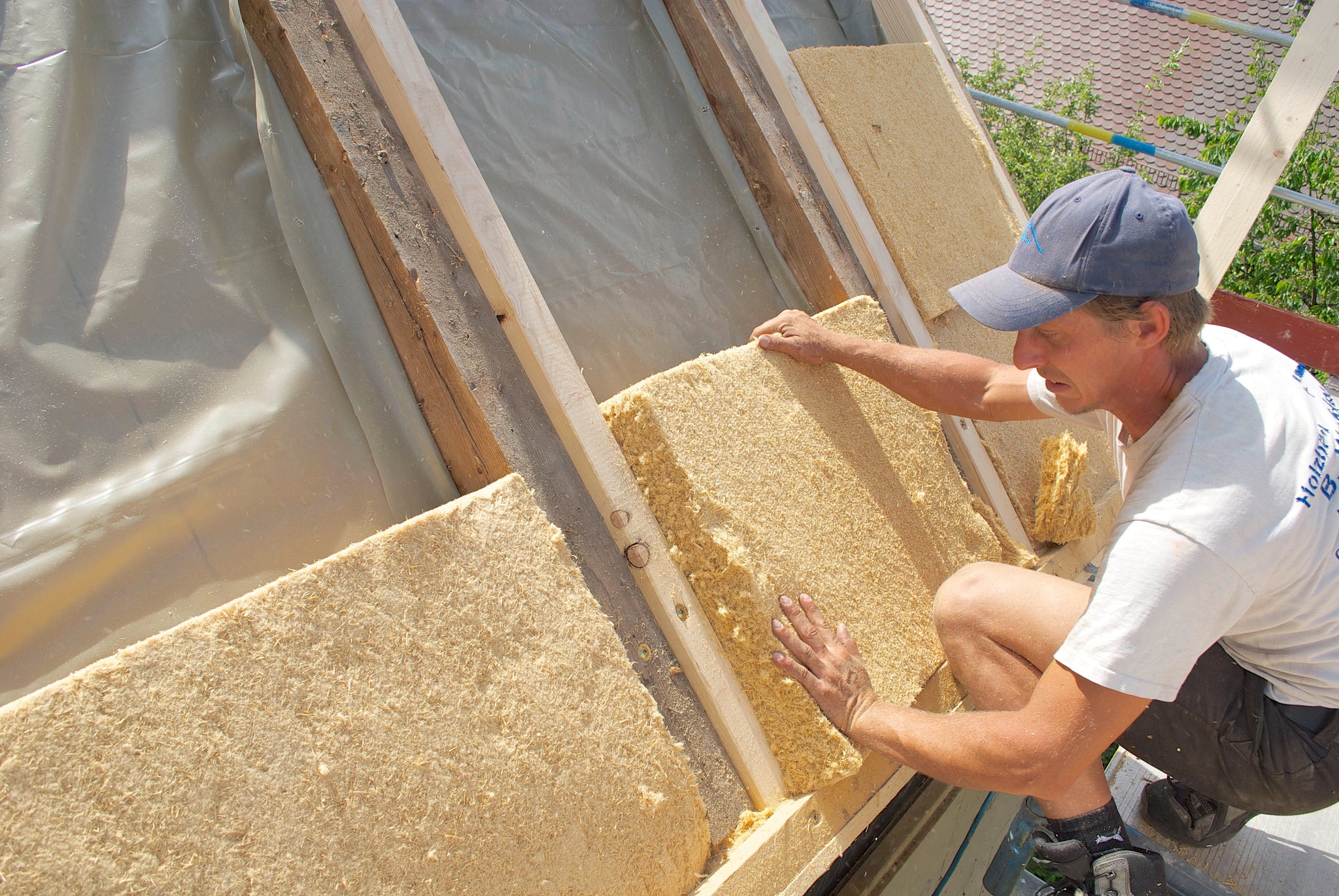

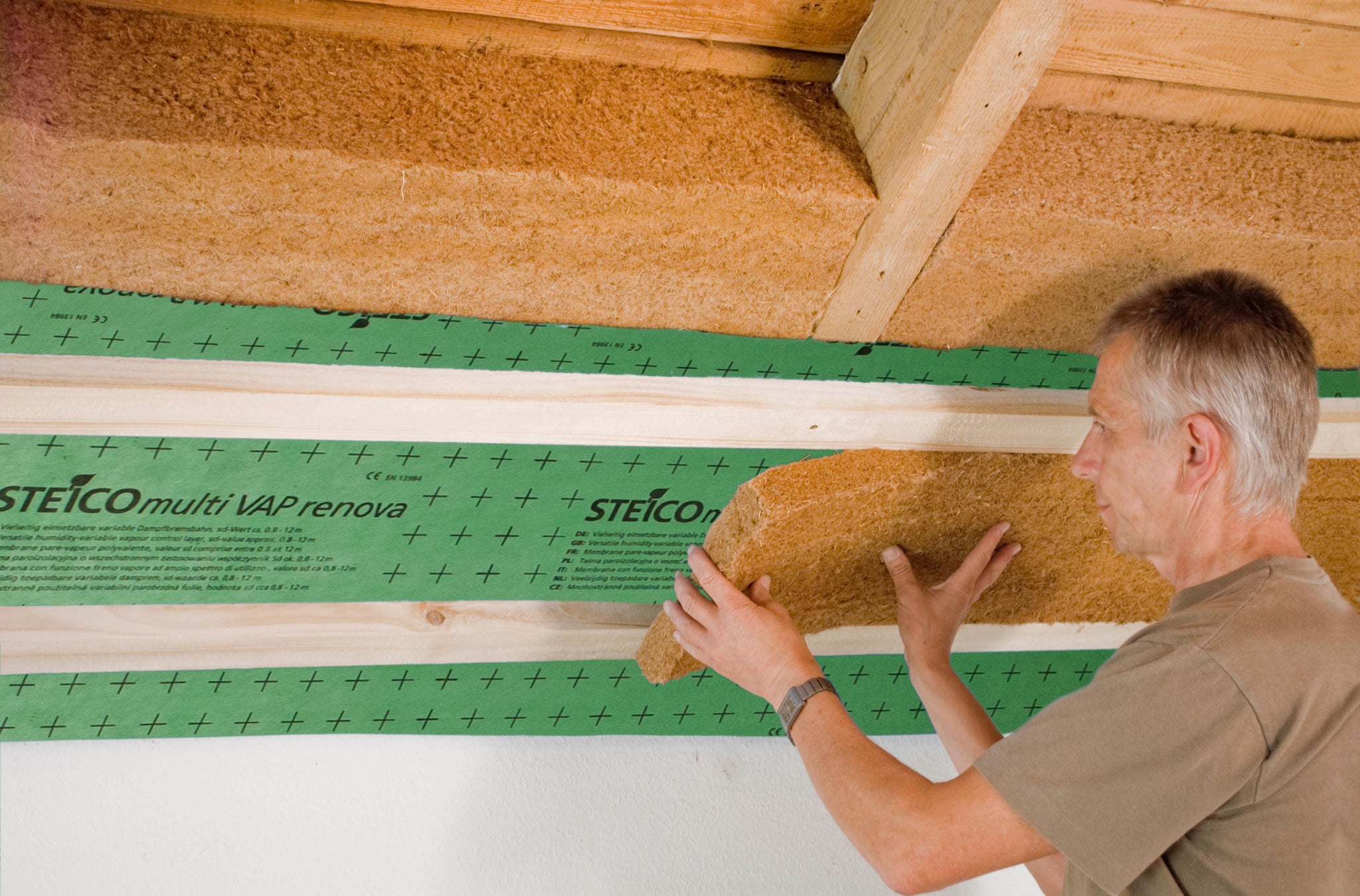

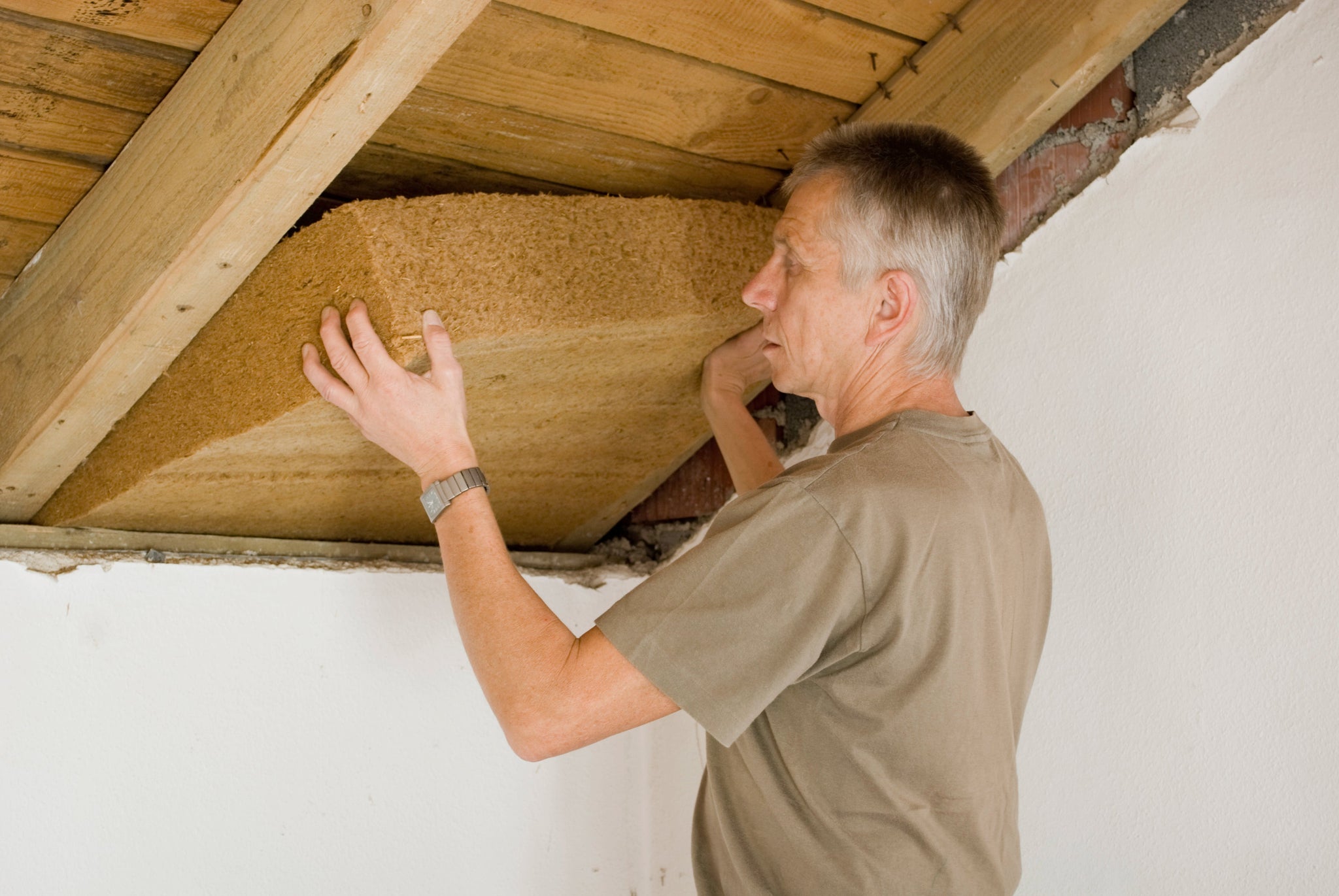

The standard board size for STEICOflex 036 is designed so that the batt will be a friction fit between 38mm wide timber studs spaced at 600 mm increments. A 375 mm wide batt is also available to fit between studs spaced at 400mm centres.

The maximum span of STEICOflex 036 is dependant on the thickness of the insulation batt used. The following maximum spans can be used:

Insulation thickness [mm]	Max. Stud spacing [mm]
40	450
50	475
60	500
80	550
100	600
120	650
140	700
160	750
180	800
200	850
220	850
240	850

To reduce waste on site or accomodate insulation depths outside of our standard range, it is possible to install multiple layers of insulation batts to achieve the required depth of insulation.

Estimated delivery time 1-3 days

STEICO flex 036 100mm x 375mm 32,13m²
