DELTA THENE waterproofing
DELTA THENE   5m x 1m
DELTA THENE   5m x 1m

DELTA THENE 5m x 1m

Dörken

Regular price

38,00
38,00

Shipping

Ask about this product

DELTA®-THENE

Full-surface cold self-adhesive membrane (KSK) for sealing components in contact with the ground against soil moisture and non-pressing water.

The standard-compliant building waterproofing made of a cross-laminated special HDPE carrier film and a sealing and adhesive layer made of bitumen rubber offers the ideal and permanent moisture protection for the building envelope.


DELTA®-THENE can be used in the following areas of application:

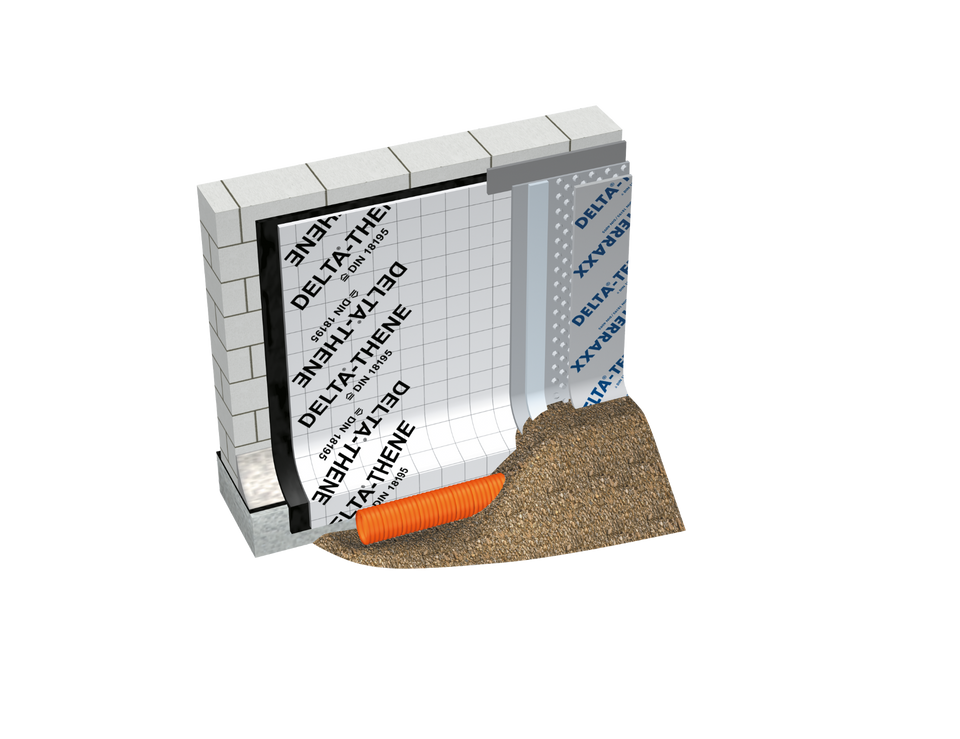

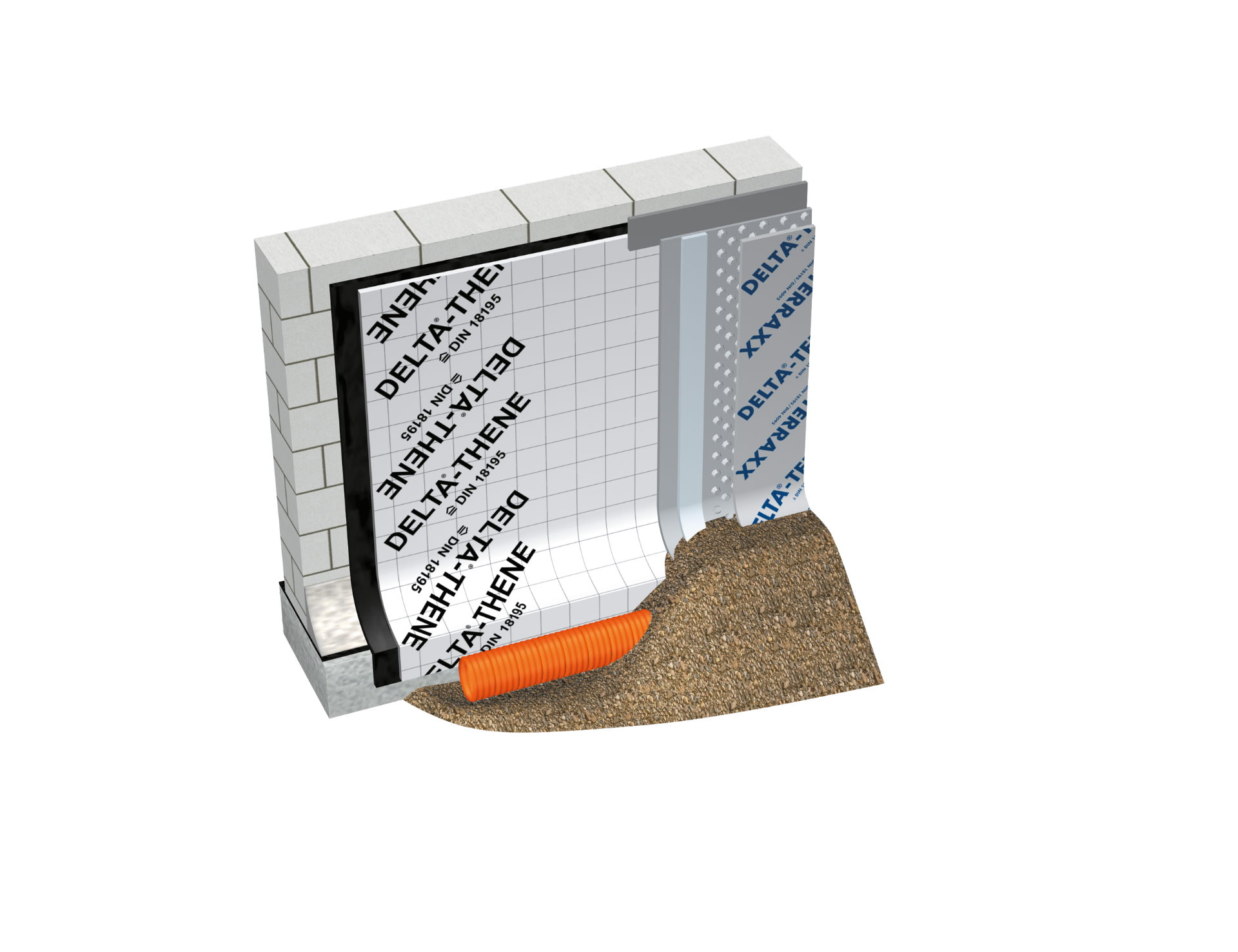

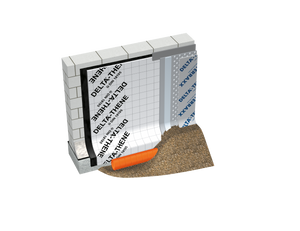

  •  as vertical seal against soil moisture and non-pressing water for the floor and for walls in contact with the ground (in accordance with DIN 18533).

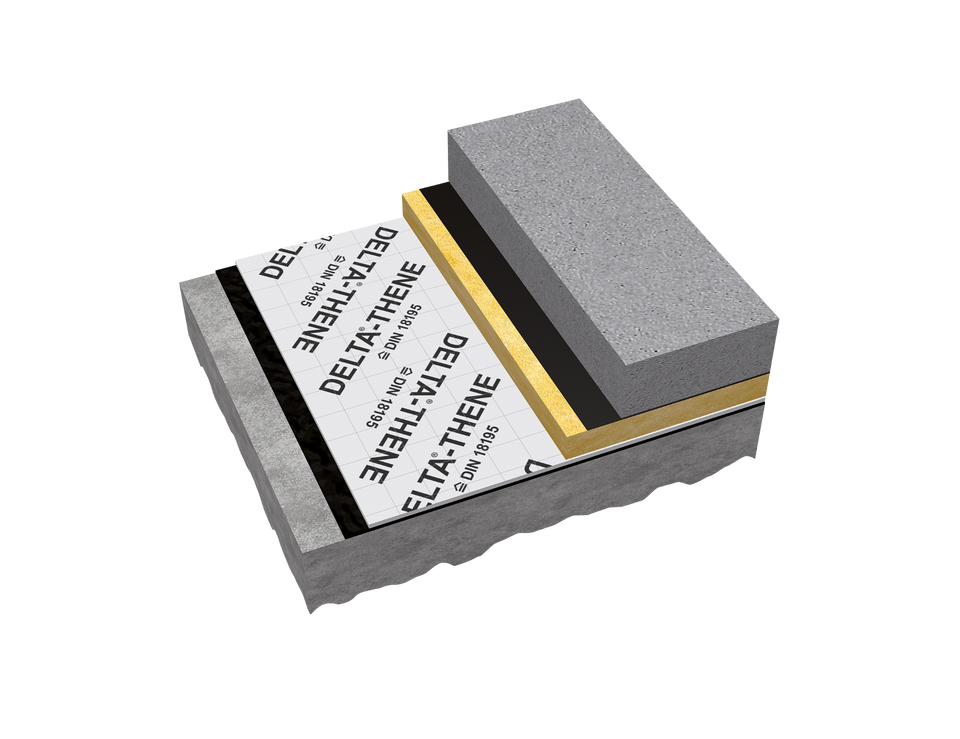

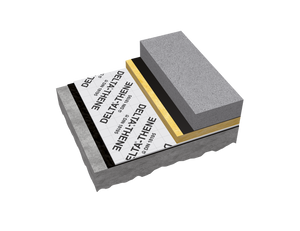

  •  as horizontal seal for balconies (according to DIN 18531), but also for wall and floor surfaces in wet rooms (according to DIN 18534).
  • as wall barrier (application type MSB-nQ) against capillary water in and under walls or as a base seal against splash water and soil moisture (according to DIN 18533).
  • as vapour barrier in the floor under screeds.
  • as an external vapour barrier on waterproof concrete walls.
  • for sealing the construction joints of filigree/triple waterproof concrete walls.
  • for flat sealing against radon gas.


DELTA THENE

Material Cold self-adhesive bitumen rubber as a sealing and adhesive layer with a cross-laminated special HDPE carrier film
Thickness approx. 1,5 mm
Weight approx. 1,6 kg/m²
Servicetemperature range from -30 °C to + 80 °C
Working temperature from +5°C to +30°C (air and surface). Up to -5°C with DELTA®-THENE KÄLTEGRUNDANSTRICH (COLD BASECOAT)
Widths 1 m
Roll length 5 m and 20 m
Storage Transport and store upright, store dry and protect from direct sunlight
Disposal EWC Code 1 703 02 Asphalt, tar-free
Packaging recyclable
Watertightness (EN 1928, Procedure B) passed (400 kPa/72 h)
Reaction to fire (EN 13501-1) Fire class E
Tensile strength (EN 12311-1) Lengthways: approx. 250 N/50 mm
Crosswise: approx. 250 N/50 mm
Tear resistance (nail shaft) (EN 12310-1) Lengthways: approx. 150 N
Crosswise: approx. 150 N
Flexibility at low temperature (pliability) (EN 1109) -30 °C
Sd-value approx. 150 m
Application type (DIN SPEC 20000-202) BA, MSB-nQ
Water exposure class (DIN 18533) W1-E (W1.1.-E, W1.2-E) und W4-E
Room usage class (DIN 18533) RN1-E bis RN3-E
Crack class (DIN 18533) RÜ1-E bis RÜ3-E
