DELTA ® -FLORAXX TOP
DELTA FLORAXX TOP
DELTA FLORAXX TOP
DELTA FLORAXX TOP
DELTA ® -FLORAXX TOP green roof
DELTA FLORAXX TOP

DELTA FLORAXX TOP

Dörken

Regular price

189,00
189,00

Shipping

Ask about this product

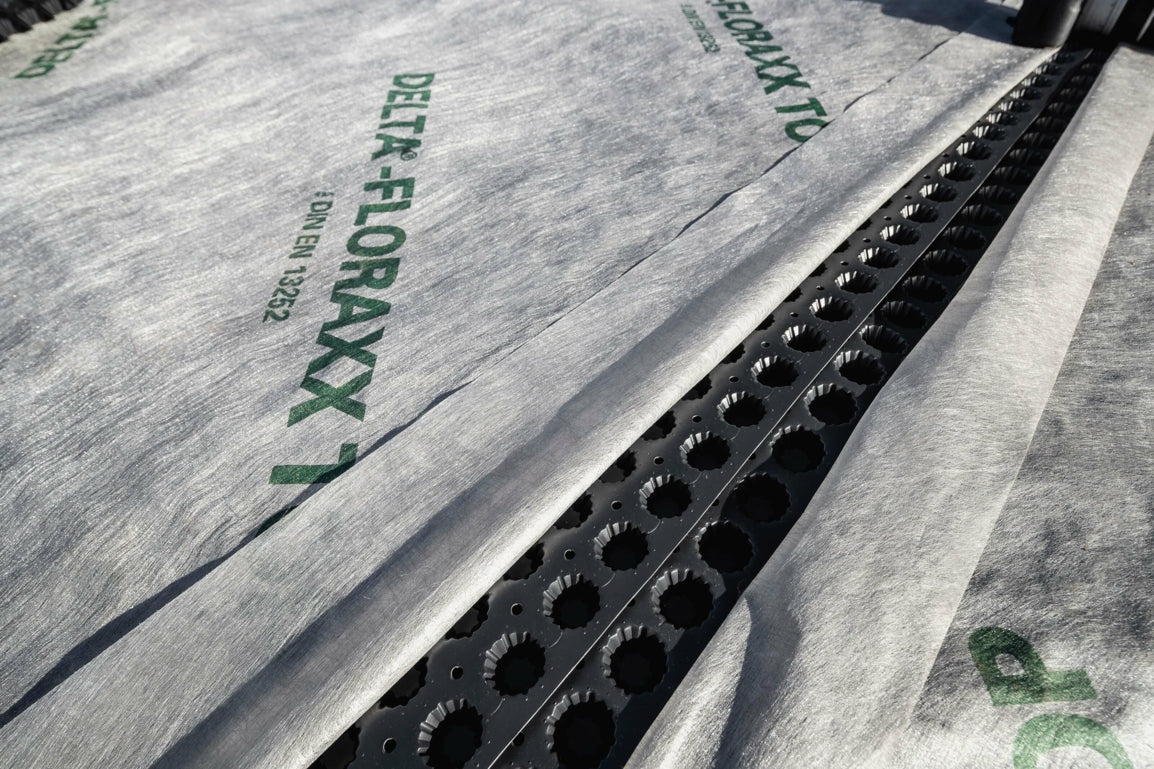

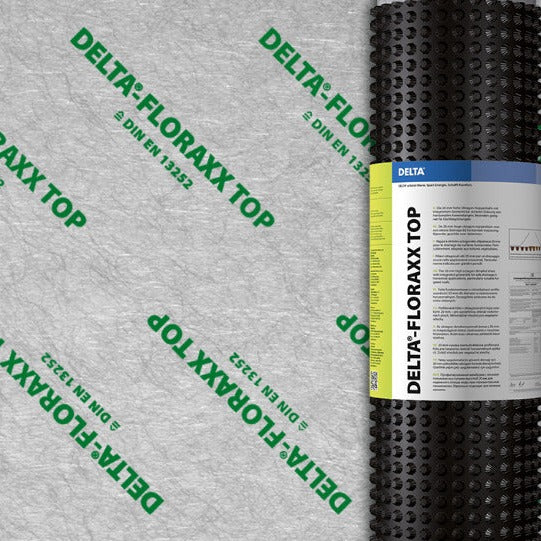

DELTA®-FLORAXX TOP perfect solution for the green roofs.

Water-retaining drainage sheet with an integrated geotextile for perfect green roofs.

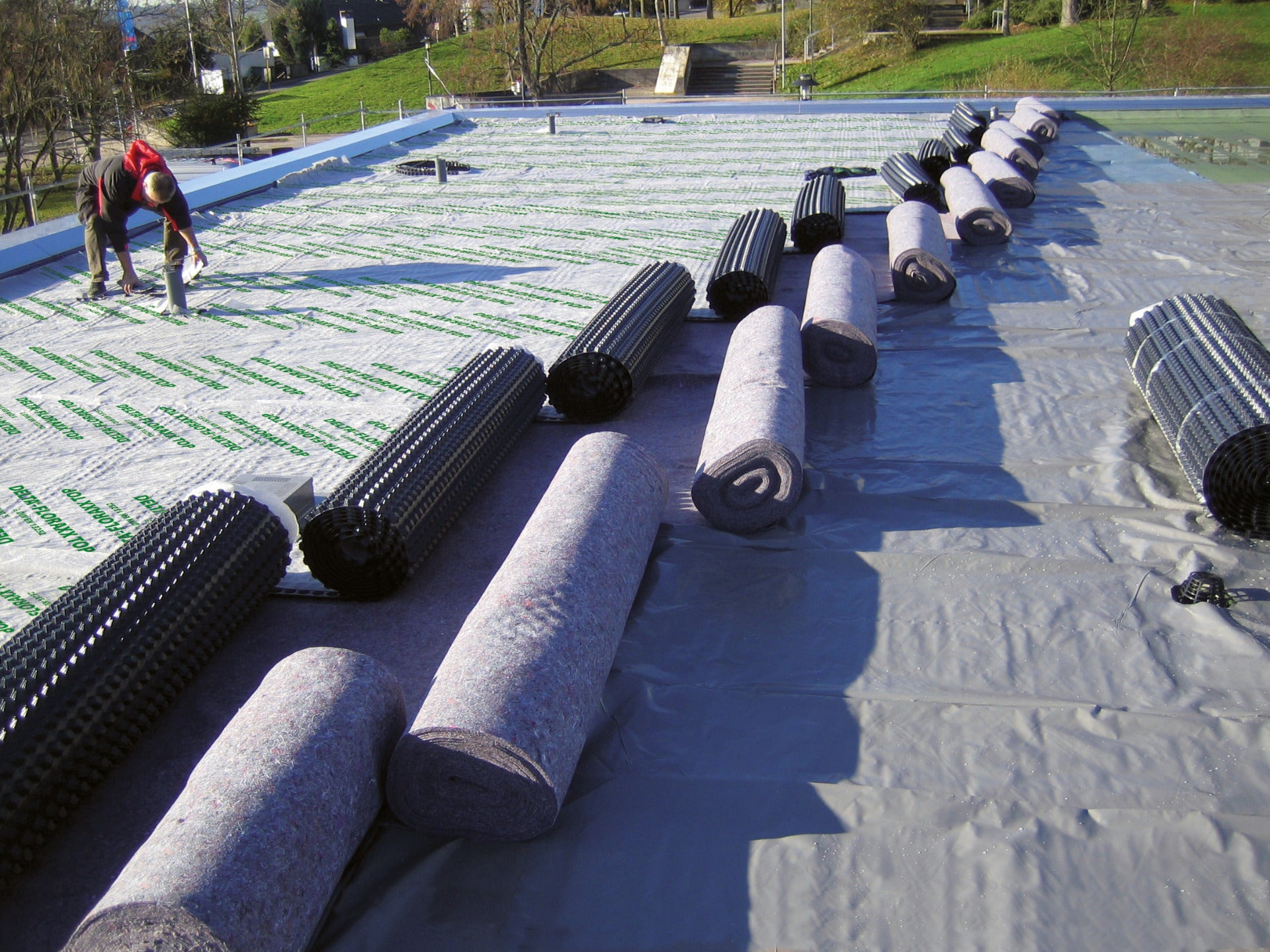

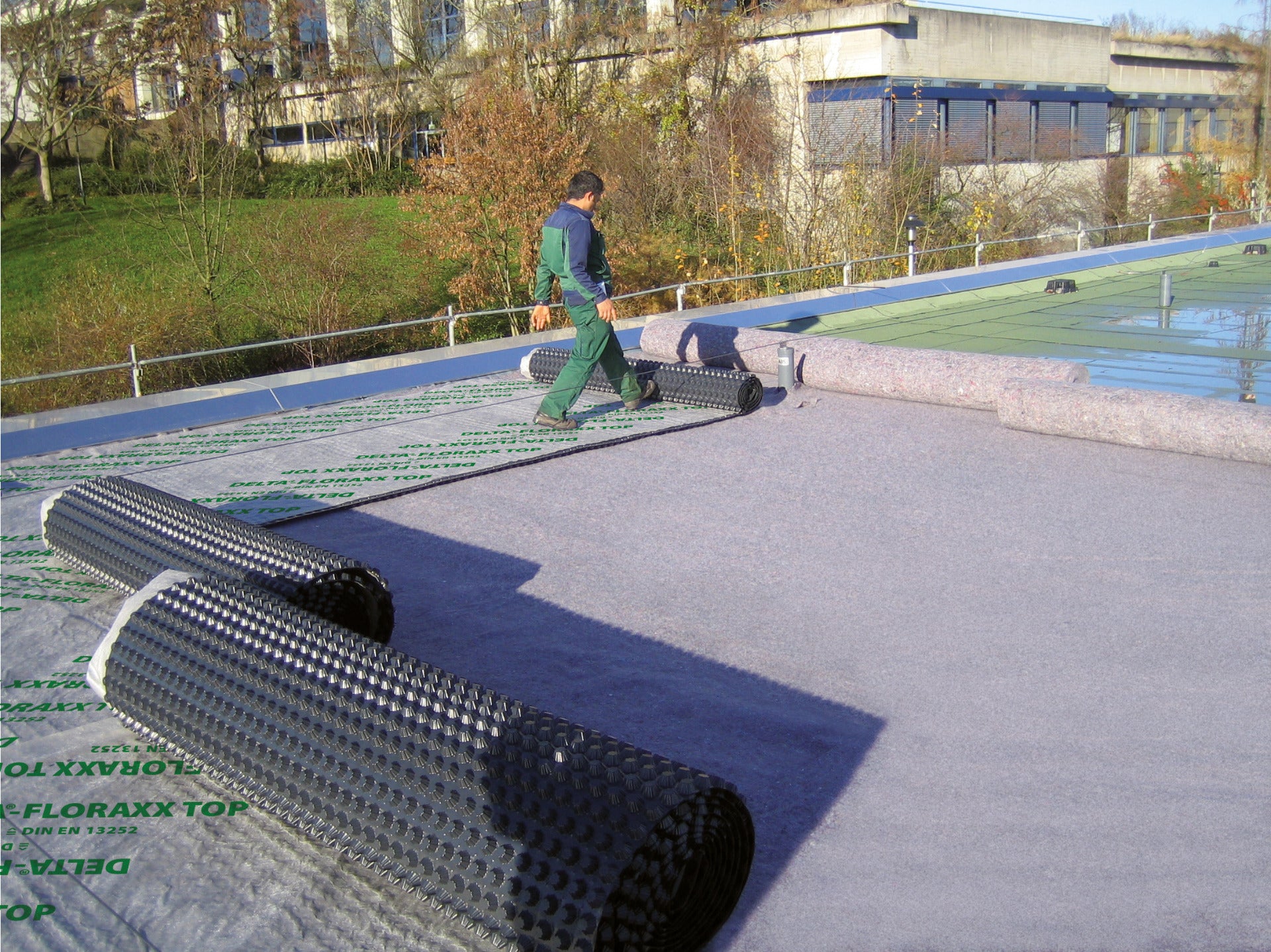

Innovative octagonal dimples for outstanding compressive strength. One sheet for drainage, water storage, and filtration. Easy and quick to lay out straight from the roll

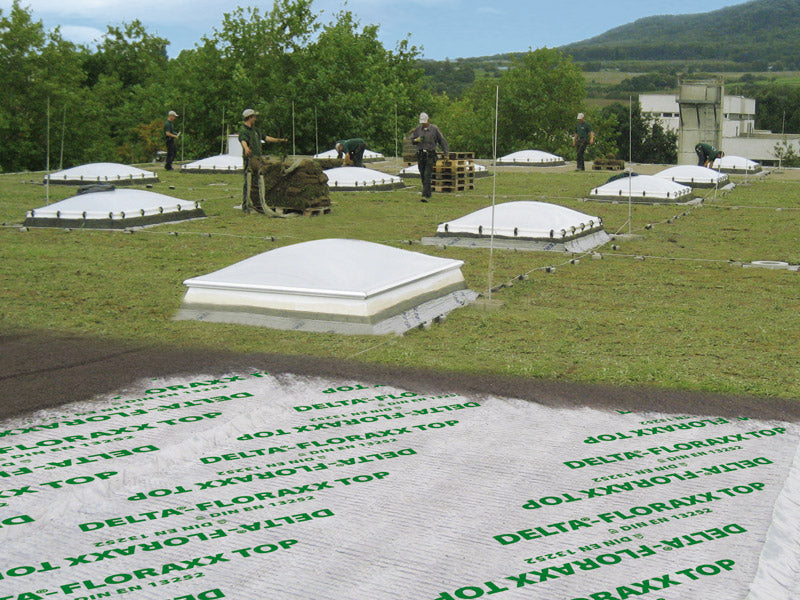

  • DELTA®-FLORAXX TOP in warm roofs with an extensive/intensive green cover.
  • Developed specifically for use in green roofs, DELTA®-FLORAXX TOP, an innovative dimpled sheet, forms a protection and drainage layer with a high load-bearing capacity which is optimised for the requirements of horizontal drainage.
  • Acting as a protection, filtration, and seepage layer, it retains 7L of water per m² within its thickness of 20mm.

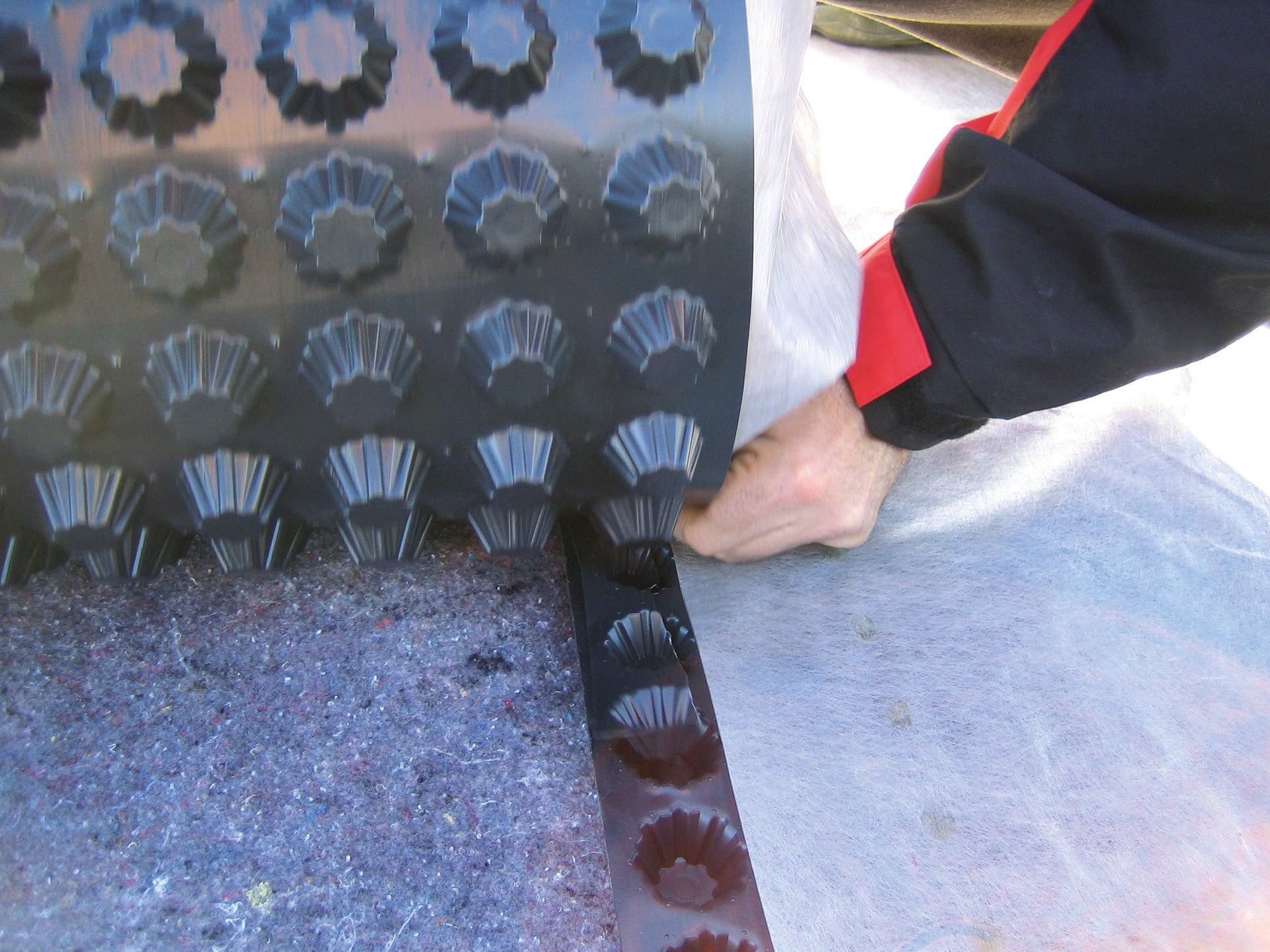

  • Thanks to its robust octagonal dimples additionally reinforced by ribs, the sheet will safely support even heavy loads.
  • As the filtration layer is fused to the top of the sheet and does not need to be laid our separately, the substrate for planting may be spread directly on the sheet that prevents water from accumulating.



Technical data: DELTA®- FLOARAXX TOP

Material Compression-resistant, water-retaining dimpled sheet made of high-density polyethylene with a fused-on polypropylene geotextile
Dimple height approx. 20 mm
Compressive strength approx. 200 kN/m²
Drainage capacity approx. 10 l/s x m
Service Temperature range -30 °C to +80 °C
Air gap approx. 10 x 10-3 m2/s (10 l/s · m) (EN ISO 12958)
Water permeability with perpendicular inflow approx. 8,5 l/m2 · s
Water storage capacity approx. 7 l/m2
Characteristic geotextile opening width
approx. 0,15 mm (EN ISO 12956)
Geotextile water permeability approx. 0,08 m/s (EN ISO 11058
Chemical properties Resistant to chemicals and degradation in soil, safe for drinking water
CE conformability CE-tested as per DIN EN 13252, test report TBU1.1 / 13525 / 0580.0.1-2009
Roll size 10m x 2m, fleece width 2.10m

Estimated delivery time 1-3 days
