DELTA-FASSADE COLOR PLUS

Dörken

Regular price

458,00

Quantity :

Color

Coral red

Agate white

Amber-orange,

Emerald green

Topaz blue

Pearl gray

Onyx black

Shipping

Ask about this product

Product Details

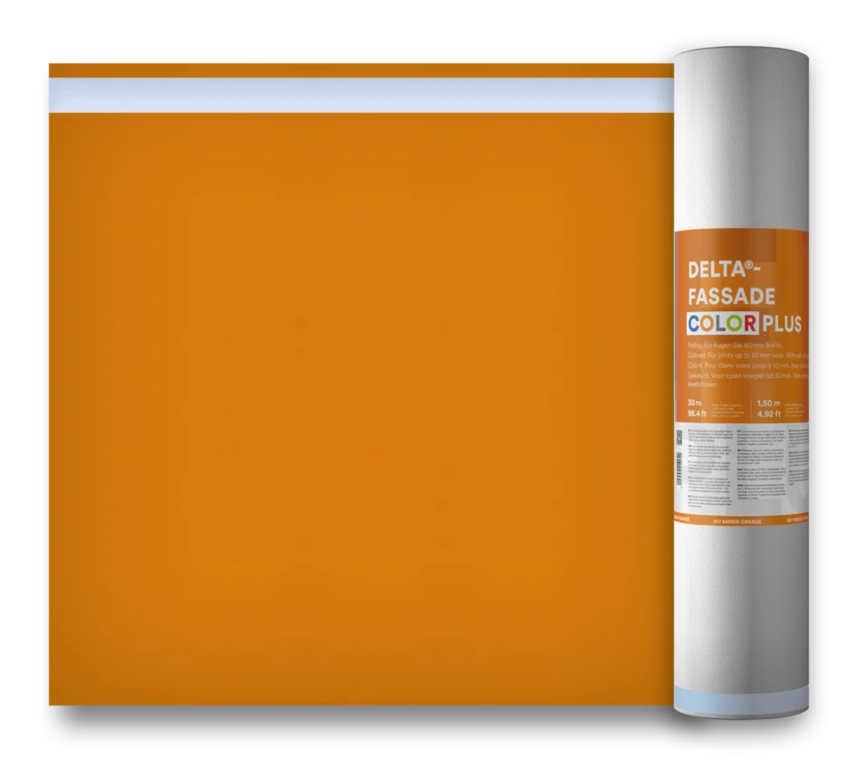

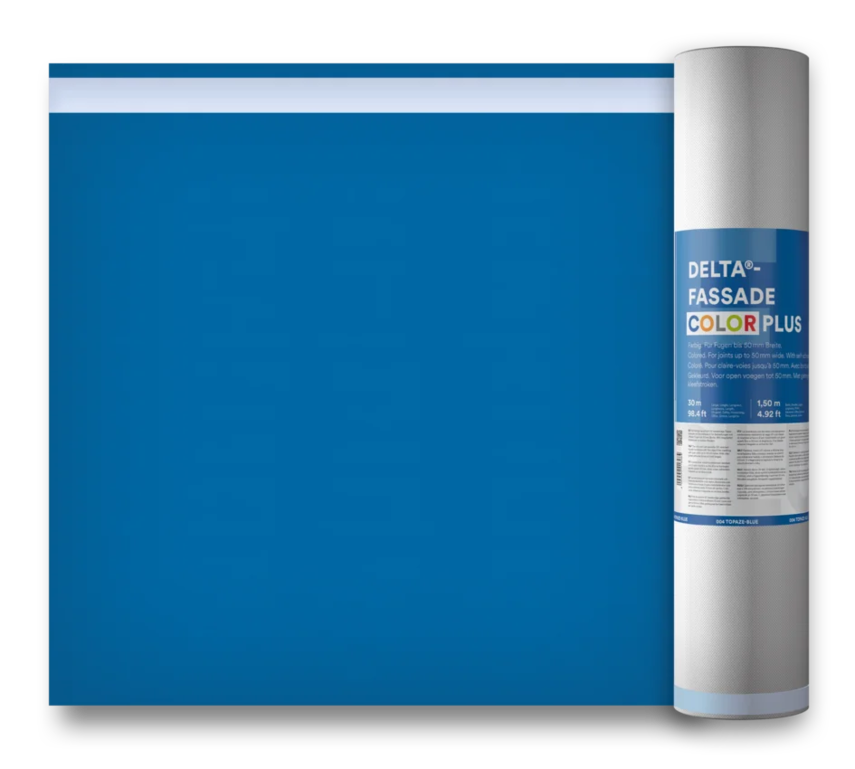

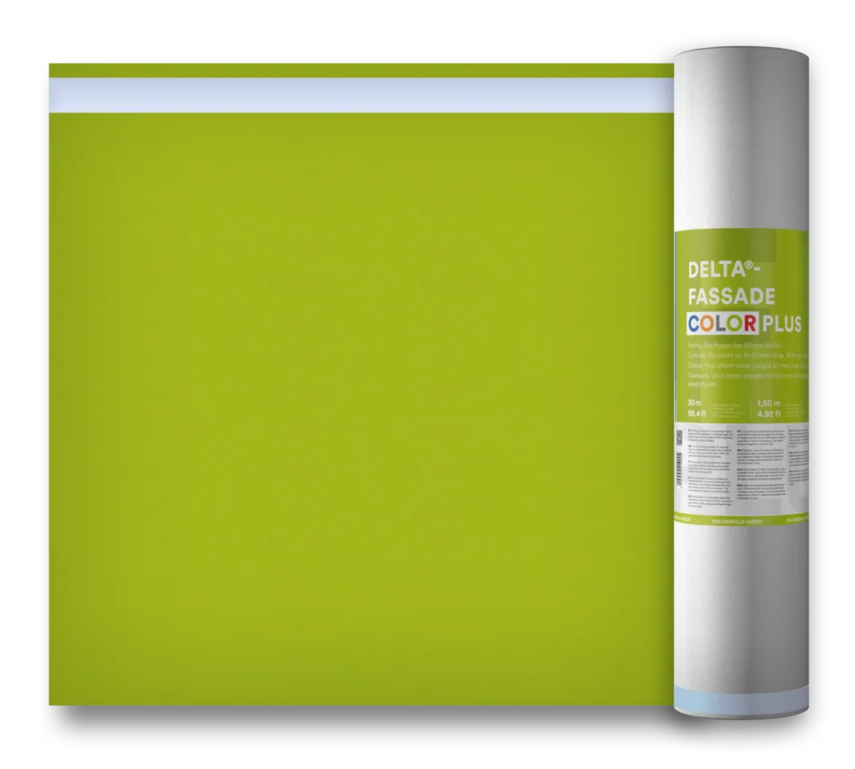

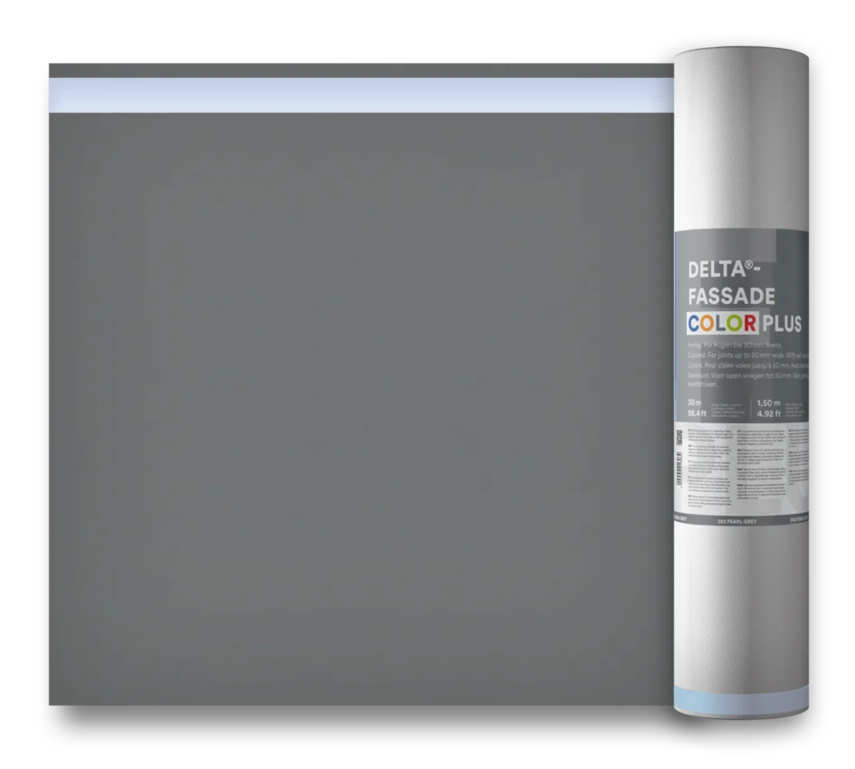

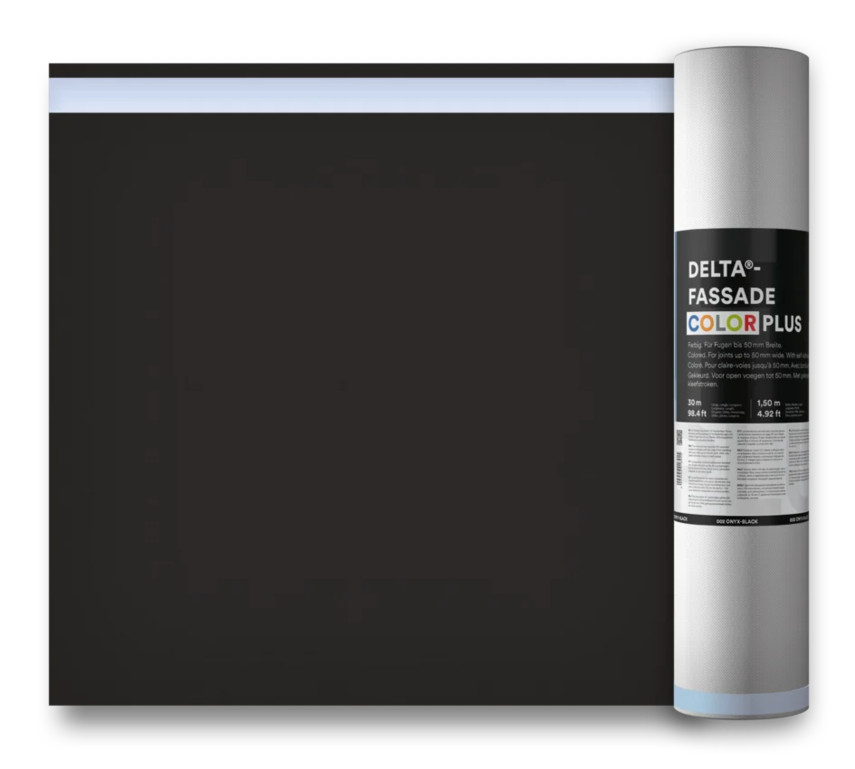

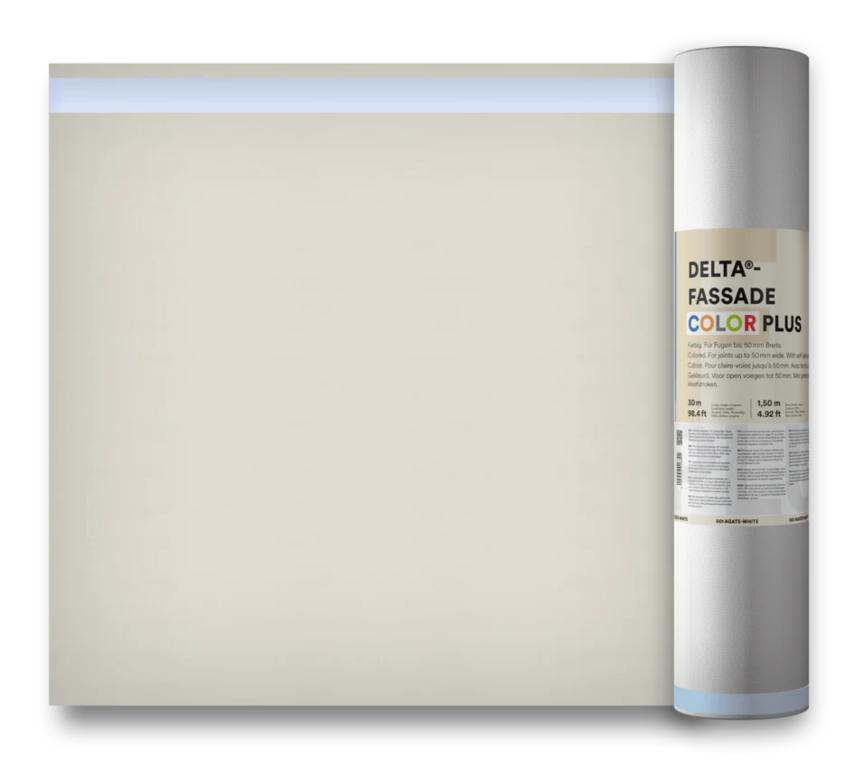

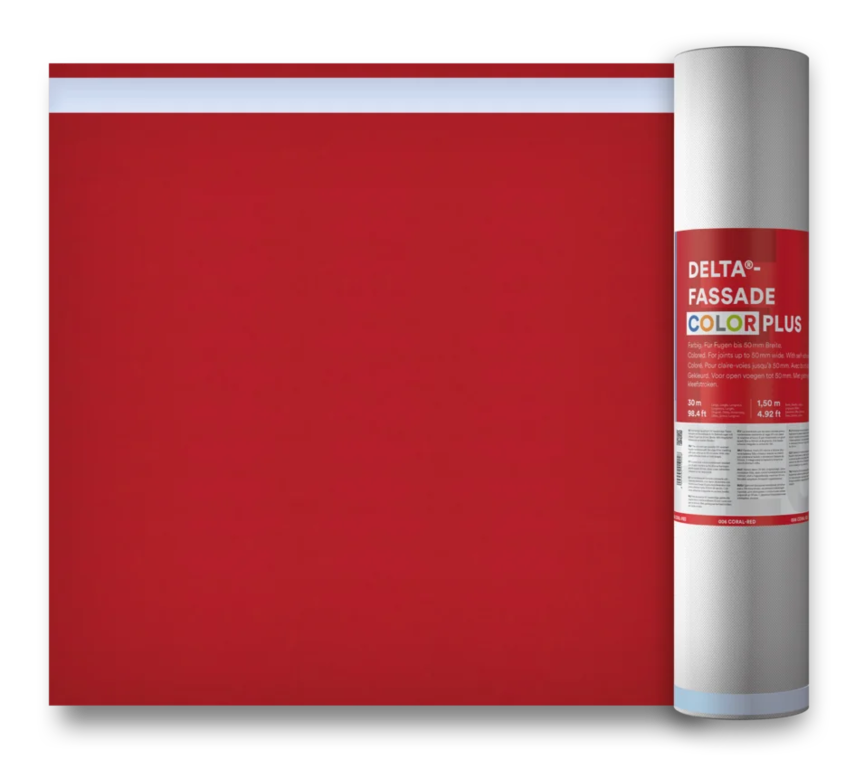

DELTA®-FASSADE COLOR PLUS

Coloured façade sheets with a large range of colours in seven standard colours for open façades equipped with joints reaching a width up to 50 mm and a maximum of joint proportion of 50% of the surface.

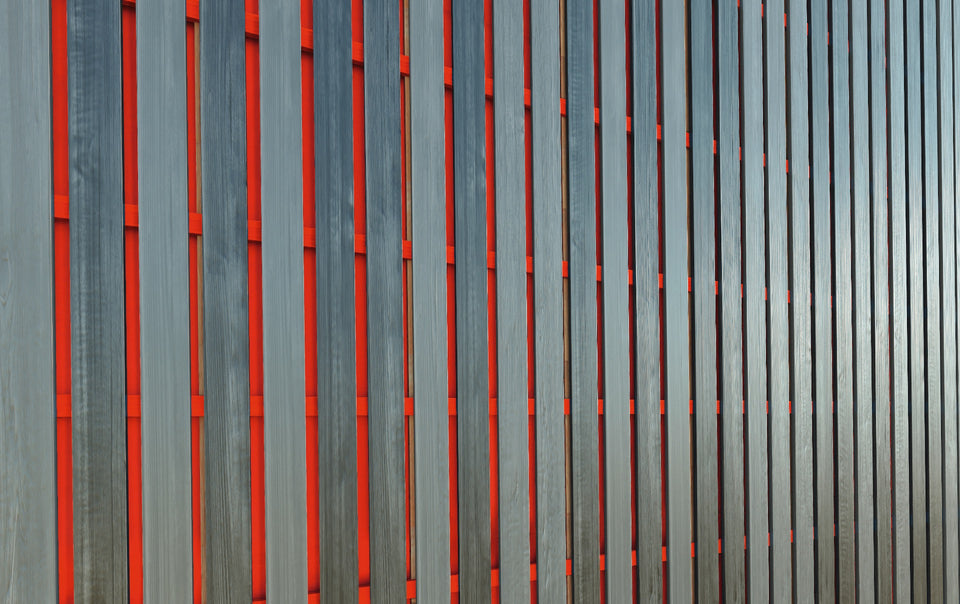

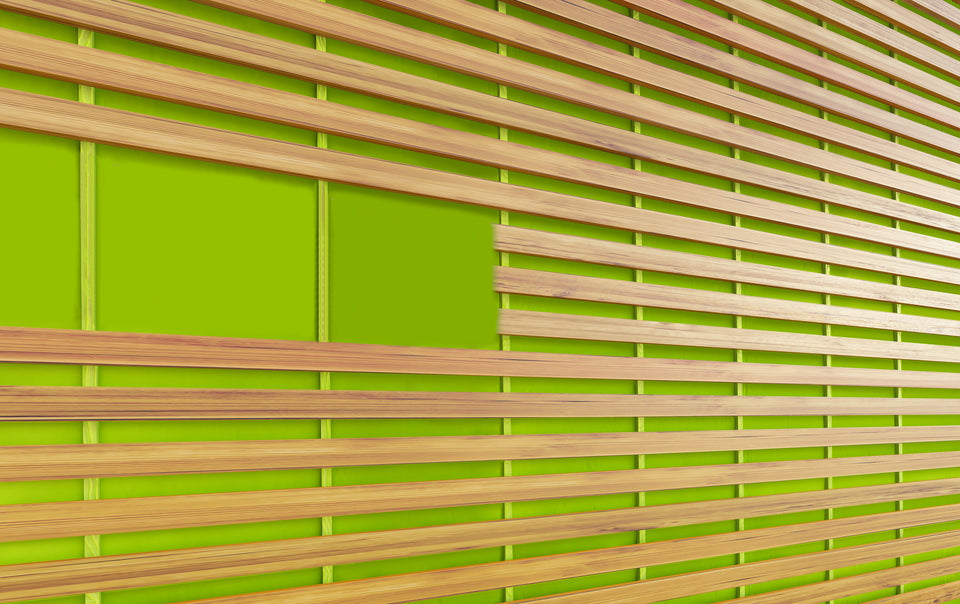

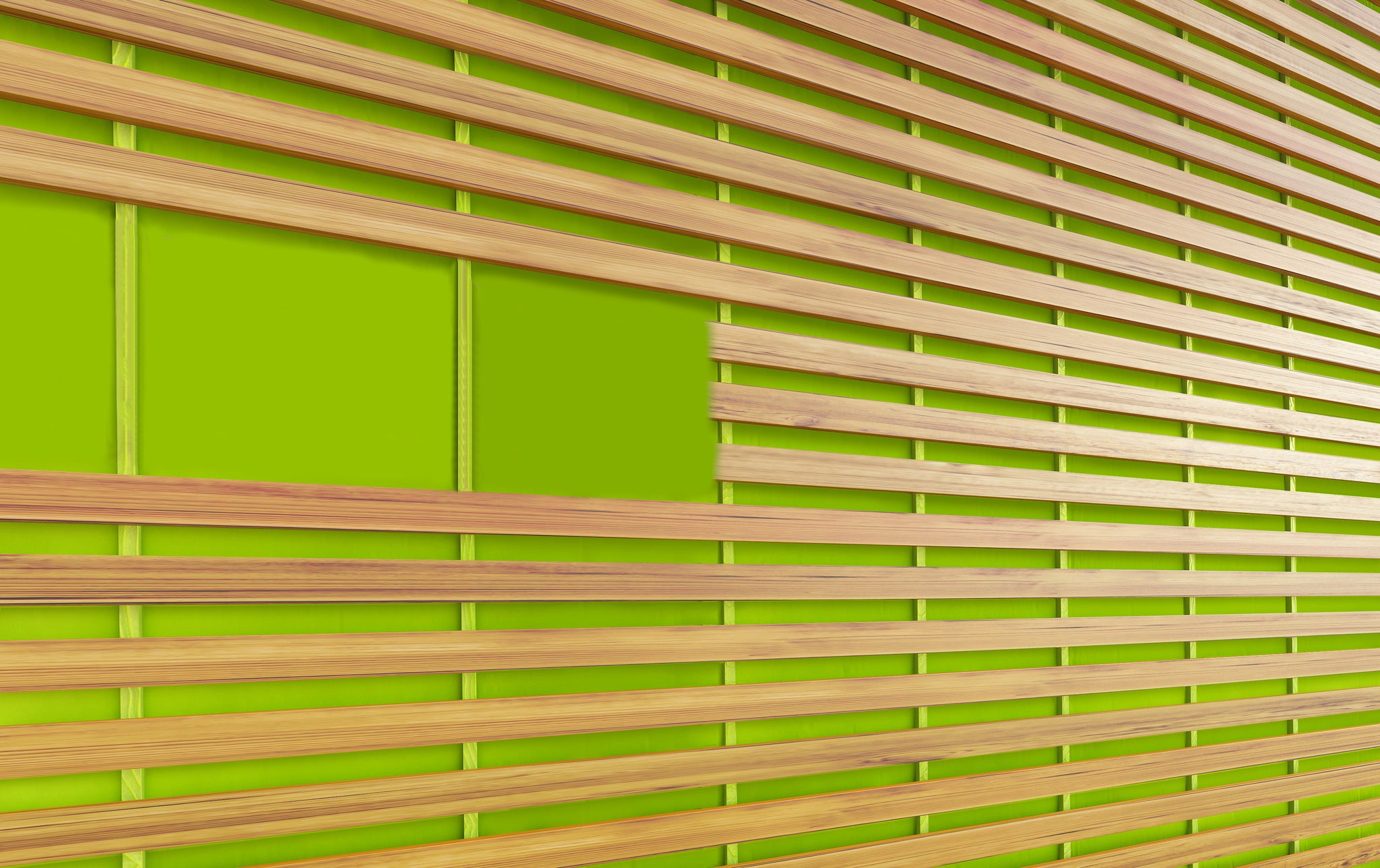

Sets additional accents in terms of design, behind open or transparent façade materials such as wood, expanded metal, metal mesh or glass.

Other special colours are available upon request.

Advantages

Permanently UV-resistant
The excessive UV-exposure may result in material fatigue or embrittlement of the material and impair the protective function of the façade membranes. Thanks to a special coating of DELTA^®-FASSADE COLOR PLUS, the membrane and the colour pigments retain their properties so that you can benefit from a permanent UV-resistance.
Flame retardant
The product DELTA^®-FASSADE COLOR PLUS meets the requirements of the Euro fire class B-s1, d0. This is the highest class of flame-retardant membranes and means that in the event of a fire, it does not drip off and only causes a low level of smoke. This way you can guarantee the protection of houses and residents.
Great range of designs
Through the selection of different materials, material combinations and (visible or concealed) fastening techniques, the rear-ventilated curtain walls (VHF) offer a great range of designs. Thanks to its seven different colour tones, the product DELTA^®-FASSADE COLOR PLUS offers you the option of designing a façade with a completely unique aesthetic. In this way, the object can be given an individual look.
Vapour permeability
The SD value of the membrane of only approximately 0.02 m guarantees the vapour permeability from the inside to the outside. This guarantees the functional reliability of the structure as well as a dry thermal insulation.

Application

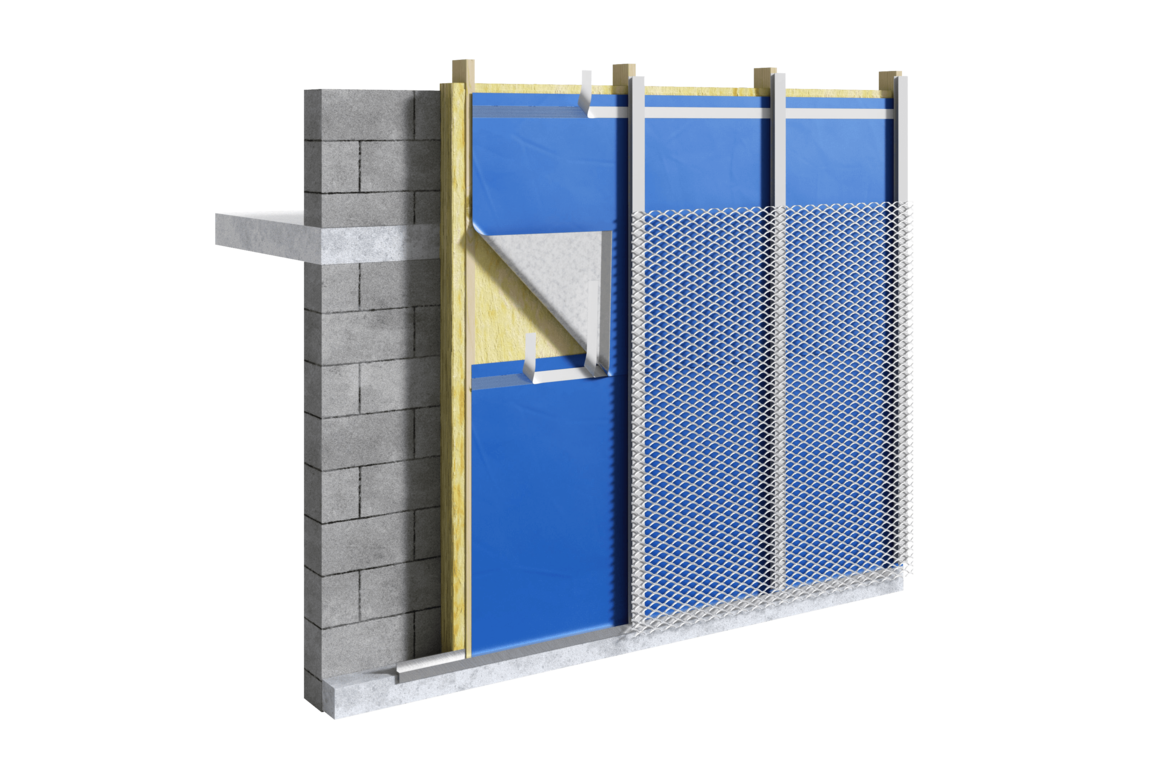

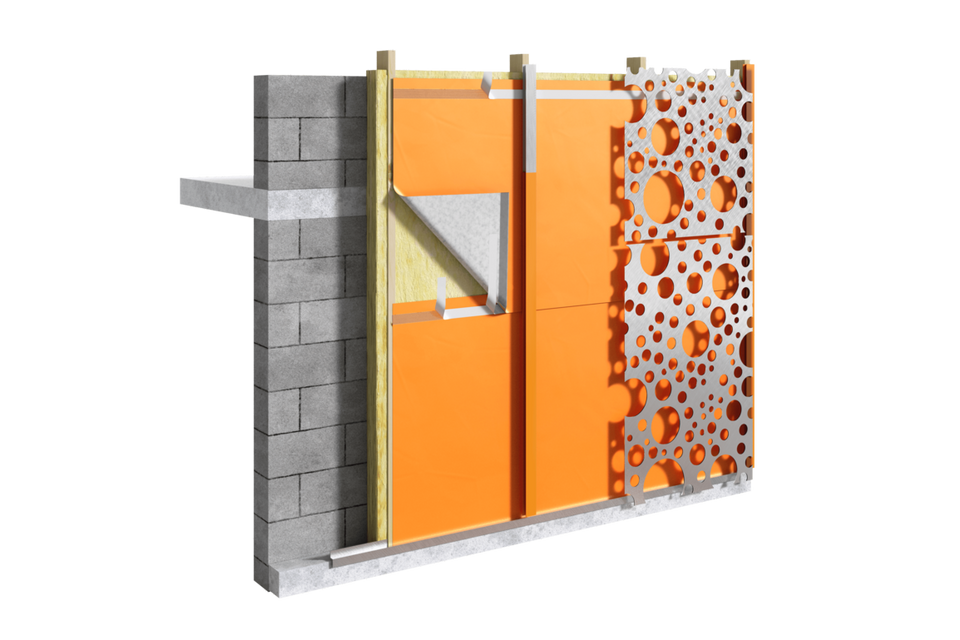

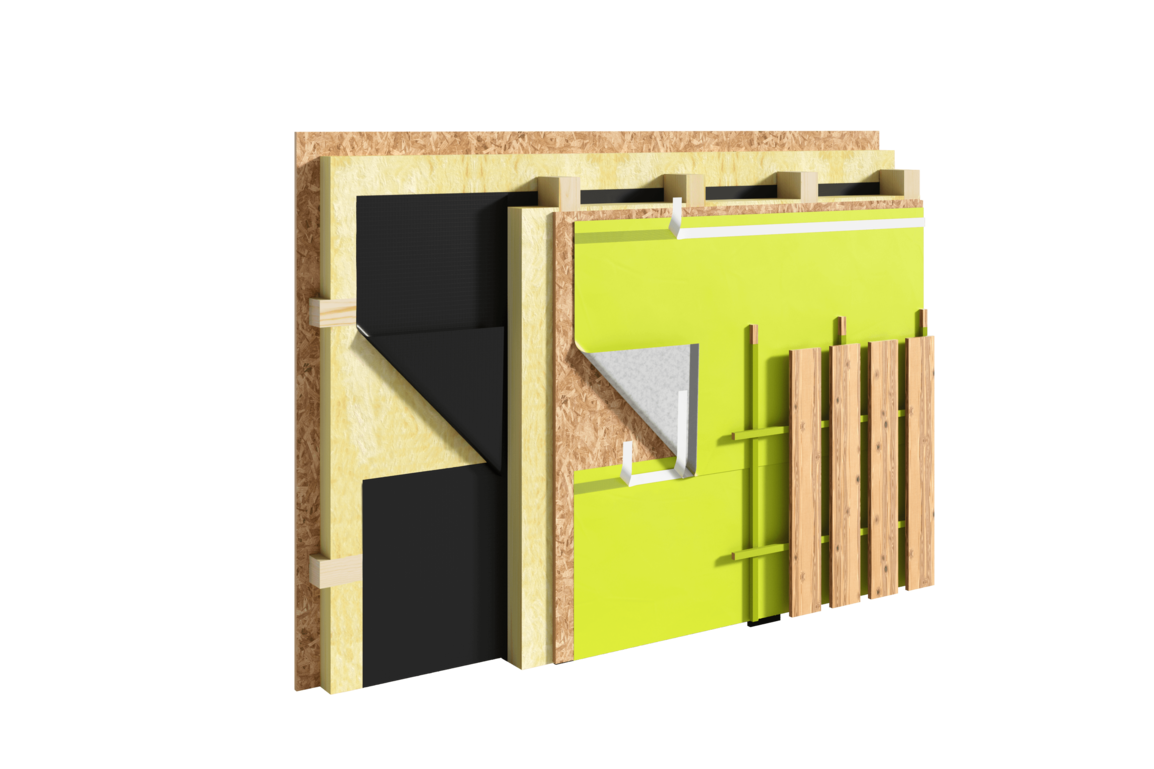

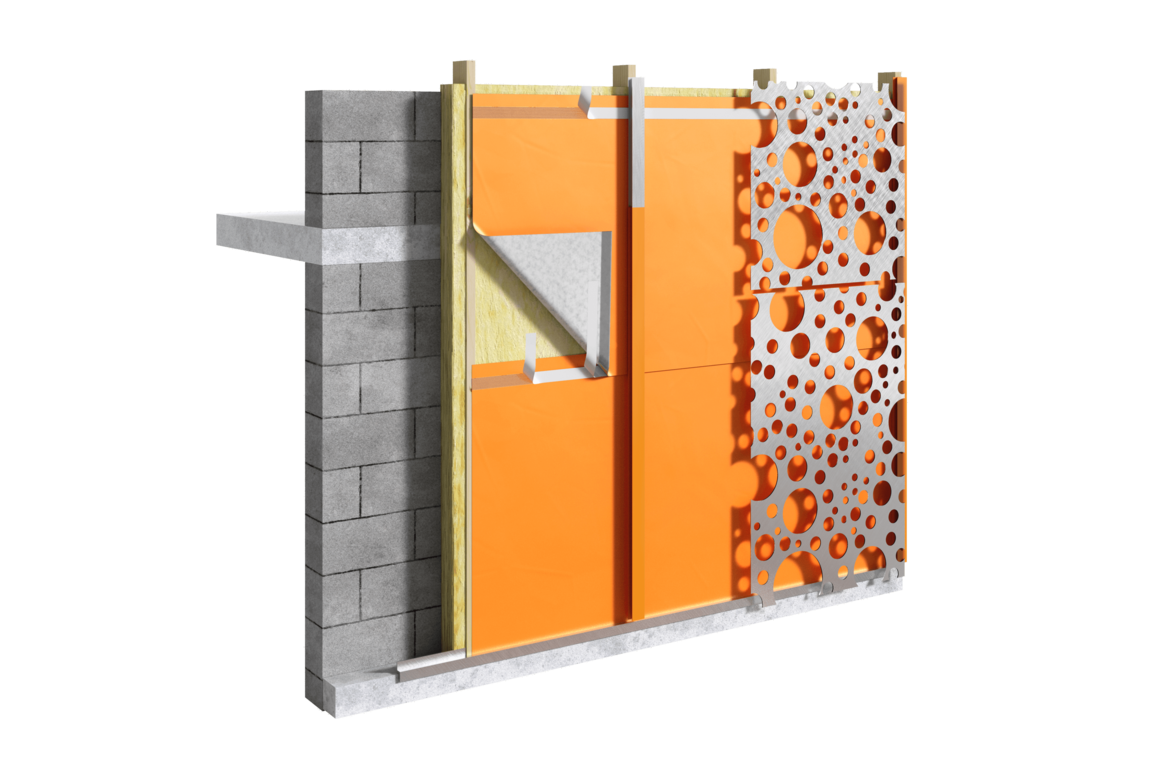

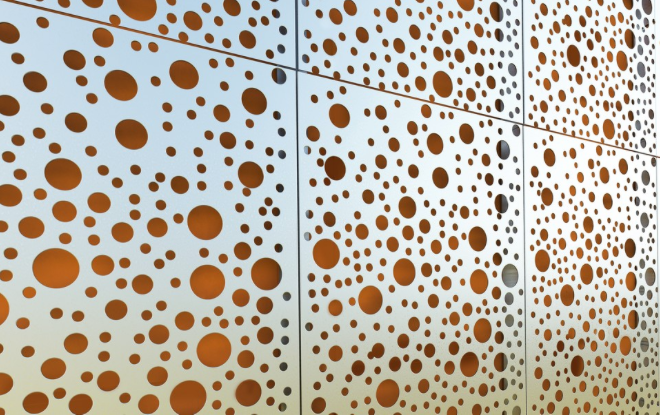

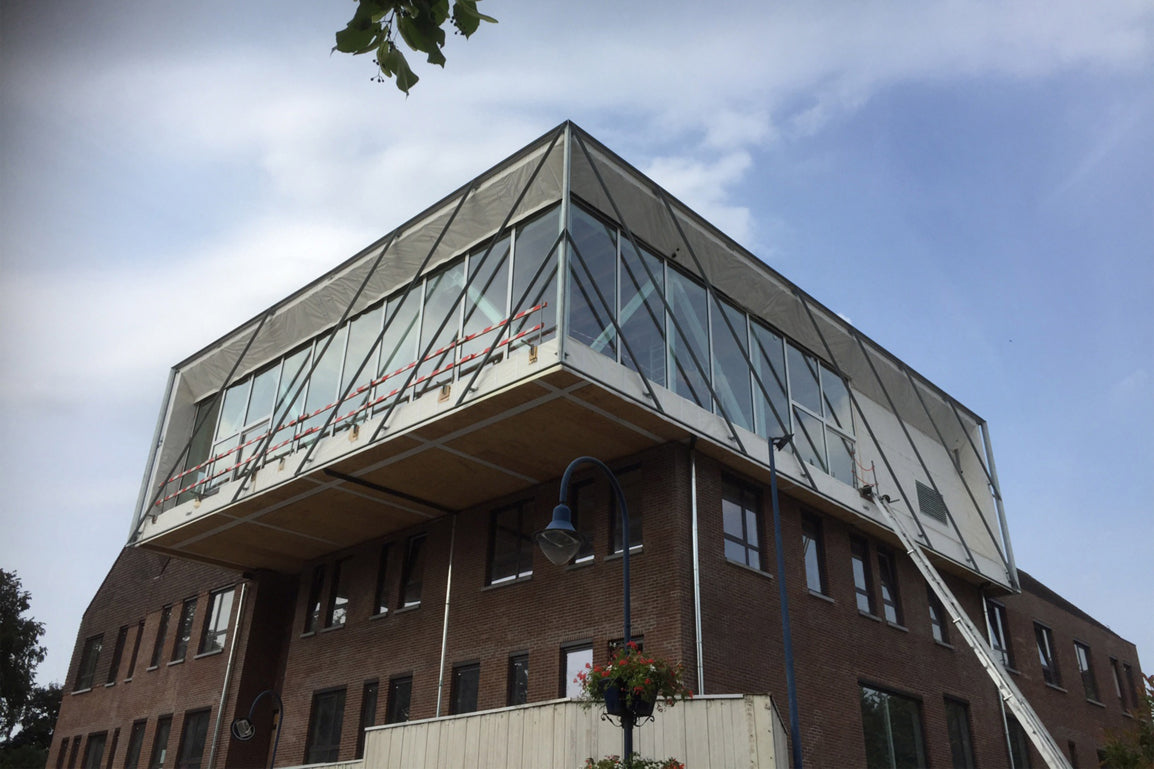

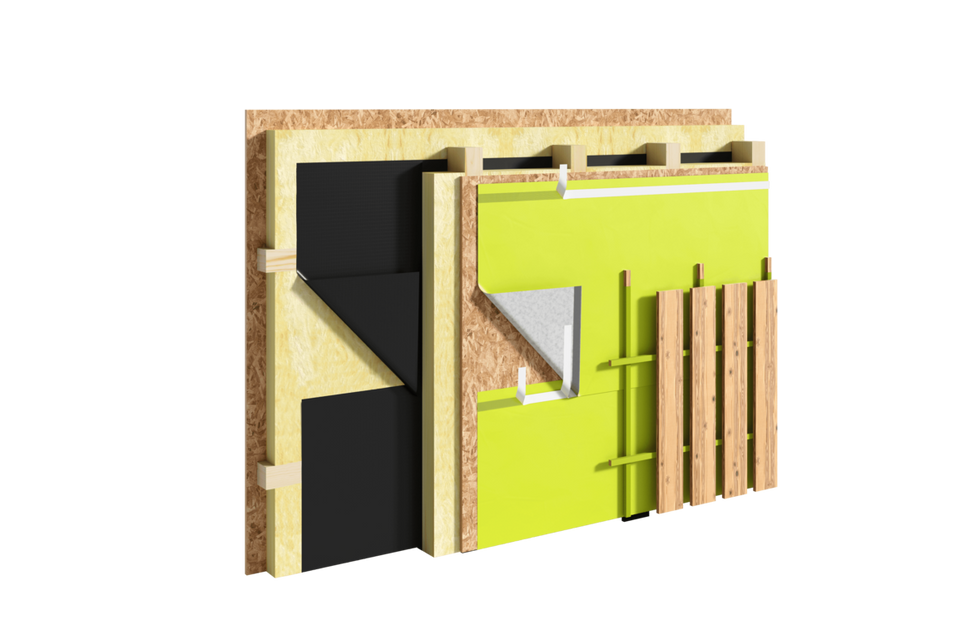

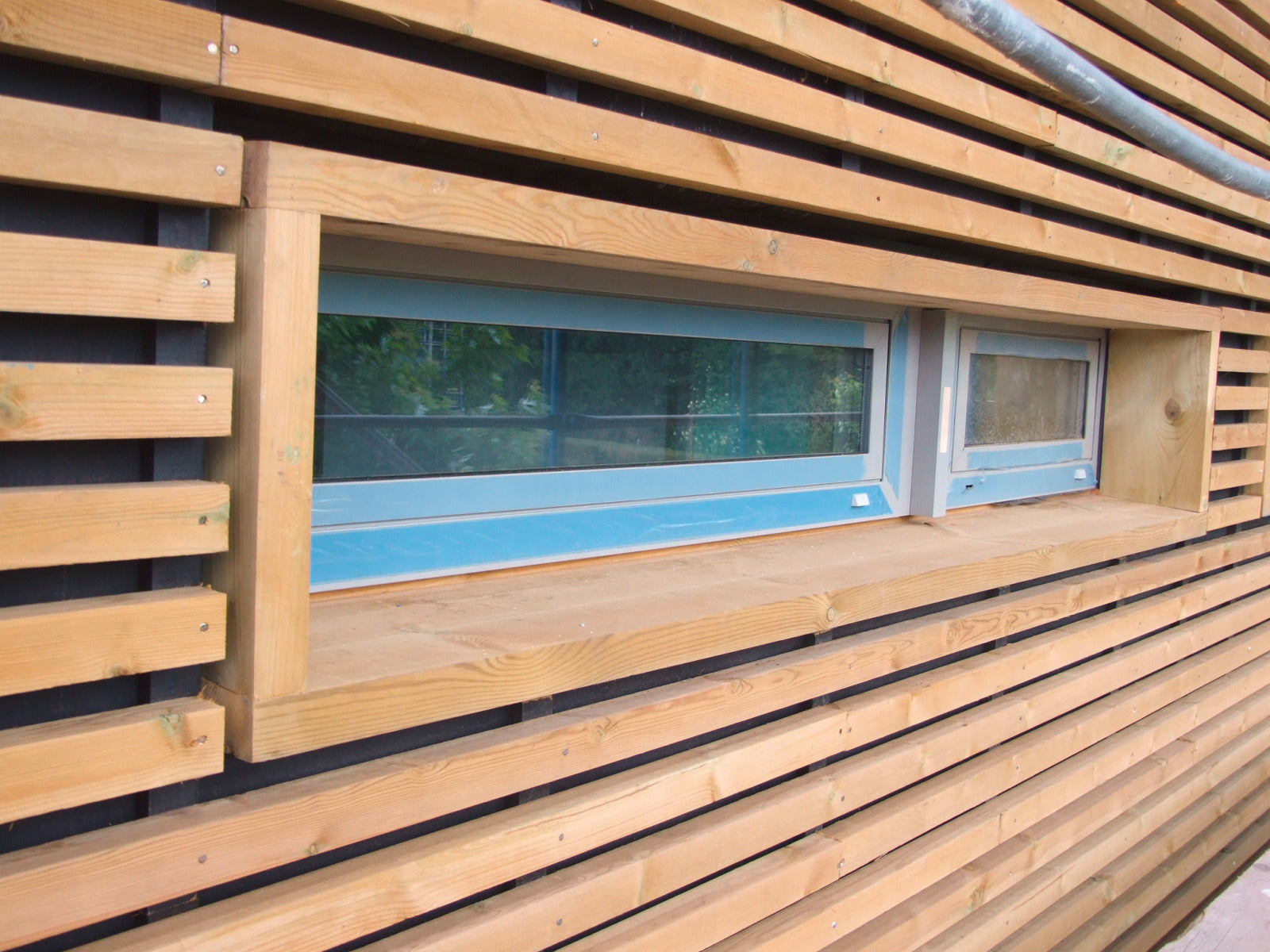

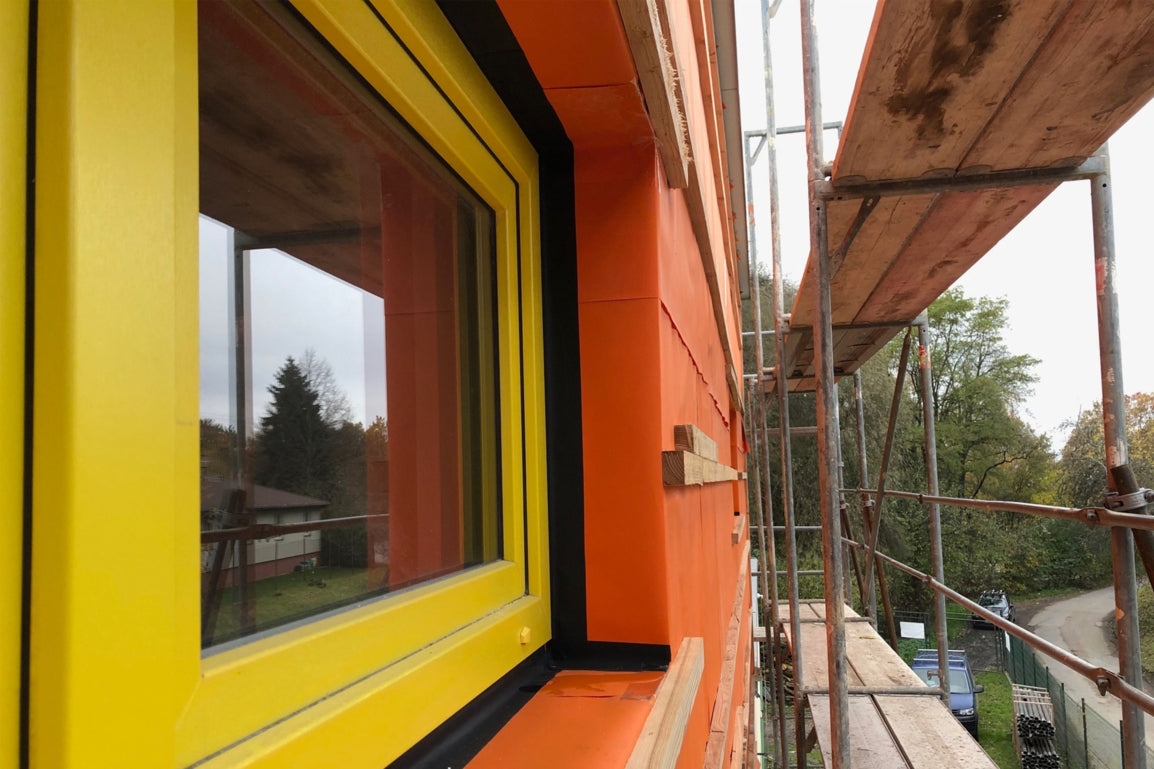

DELTA^®-FASSADE COLOR PLUS can be installed behind wooden façades, wood composite, expanded metal, panels made of perforated sheet metal or transparent/glass façades equipped with joints reaching a width up to 50 mm and a maximum of joint proportion of 50% of the surface.

Technical data

Material	Highly tear-resistant polyester fleece with a waterproof plastic coating and with adhesive zones placed on both edges.
Colour	Amber-orange, Coral red, Emerald green, Topaz blue, Pearl gray, Agate white, Onyx black.
Description	Coloured, vapour-permeable facade membrane for cladding equipped with joints reaching a maximum width of 50 mm and a maximum of joint proportion of 50% of the surface. In the case of glass cladding, the maximum penetration of UV-radiation may be 10%.
Surface weight	approx. 300 g/m²
Thickness	approx. 0,60 mm
Watertightness	Watertight W 1, EN 13859-1+2
Tensile strength	370 / 270 N/5 cm
Sd-value	approx. 0,02 m
Servicetemperature range	from -40 °C to +120 °C
Nail tear resistance	150 / 150 N
Fire index	Euroclass B-s1,d0; VKF RF2(5.2)
Moisture resistance factor	approx. 0,028 m²hPa/mg
Roll weight	approx. 13,5 kg
Roll size	30 m x 1.50 m

Estimated delivery time 1-3 days
